How Are Solar Panels Made?

How Are Solar Panels Made? Solar panels have become increasingly popular as a renewable energy source for homes and businesses. But have you ever wondered how these panels are made? Let’s take a closer look at the manufacturing process of solar panels. There are 10 ways to help you use efficiently solar energy by growatt on grid inverter in your daily life.

What are solar cells made of

Solar cells, which are also known as photovoltaic cells, are generally made of semiconducting materials such as silicon. The most common type of solar cell, known as a crystalline silicon cell, is composed of a layer of silicon that has been doped with other elements to create a positive and negative charge. When sunlight hits the cell, photons are absorbed by the semiconductor material, creating an electric current. The electric current is then captured and, after that, converted into usable electricity for powering homes, businesses, and other applications.

In addition to silicon, solar cells can be made of other materials such as cadmium telluride, copper indium gallium selenide, and amorphous silicon. These materials are often used in thin-film solar cells, which can be more flexible and lightweight than crystalline silicon cells. Each type of material has its own unique properties and efficiency levels, but they all work on the same basic principle of converting sunlight into electricity. As solar technology continues to advance, researchers are exploring new materials and techniques that can improve the efficiency and cost-effectiveness of solar cells.

Solar panel manufacturing process


Here, we have provided you with the solar panels’ construction step-by-step guide, but before that, let’s check out the solar panel raw material list:

  1. Silicon wafers or cells
  2. Metal frames or mounting structures
  3. Encapsulants (EVA or Tedlar)
  4. Backsheets (PET or glass)
  5. Busbars or ribbon connectors
  6. Junction boxes
  7. Solar photovoltaic (PV) modules
  8. Glass coversheets
  9. Sealant materials
  10. Anti-reflective coatings

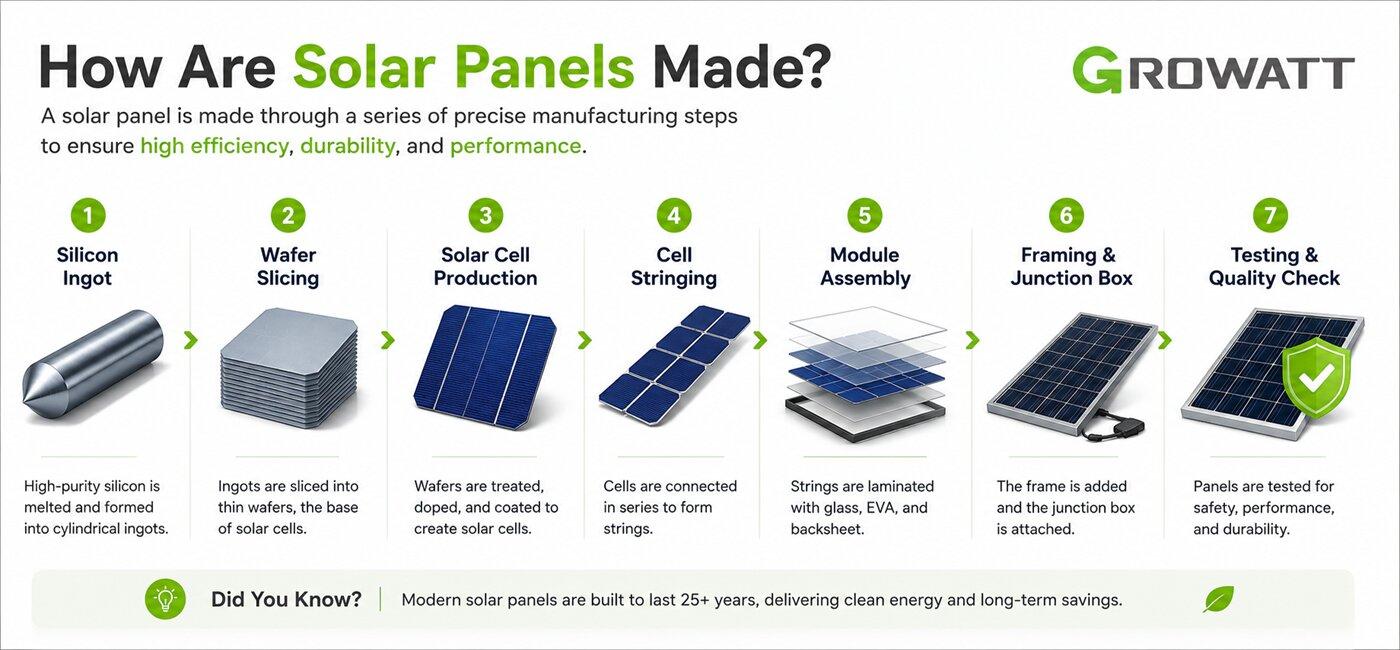

Now, let’s talk about producing solar panels.

  1. Silicon Ingot Formation: The manufacturing process starts with the production of silicon ingots. These ingots are made by melting high-purity silicon in a furnace and then shaping the molten silicon into a solid cylindrical ingot.
  2. Silicon Wafer Production: The silicon ingots are then sliced into thin wafers by using a sawing machine. The wafers are typically around 200 micrometers thick and have a diameter of about 6 inches.
  3. Solar Cell Fabrication: The silicon wafers are then processed to create solar cells. This involves several steps:

– Texturing: The surface of the silicon wafer is textured to reduce the reflection of sunlight and increase light absorption.

– Doping: Doping is done to create a positive and negative charge within the solar cell, which is essential for generating electricity.

– Metallization: Metal contacts are added to the front and back of the solar cell to allow for the flow of electricity.

  1. Solar Panel Assembly: Once the solar cells are fabricated, they are assembled into solar panels. This involves placing the solar cells onto a backing material, such as glass or plastic, and connecting them in a series or parallel configuration. we will be explaining this section in more details.
  2. Encapsulation: The solar cells are then encapsulated to protect them from environmental elements like moisture and dust. This typically involves sandwiching the solar cells between a top layer of glass and a bottom layer of plastic and sealing the edges with an adhesive.
  3. Testing: Each solar panel goes through rigorous testing to make sure that it meets quality and performance standards. This includes measuring electrical output, resistance to weather conditions, and durability.
  4. Packaging and Shipping: Once the solar panels have passed testing, they are packaged and shipped to distributors or directly to customers for installation.

Overall, the solar panel manufacturing process is complex and requires precision and attention to detail to ensure that the final product is of high quality and efficiency.To get more details about Off grid inverter, call us.

solar panel assembling process

  1. Frame assembly: The first step in the assembling process is to construct the frame of the solar panel. This typically involves attaching the aluminum frame to the back of the solar cells to provide structural support.
  2. Solar cell installation: Once the frame is assembled, the solar cells are then installed onto the frame. The solar cells are interconnected using busbars to form a circuit that captures sunlight and converts it into electricity.
  3. Encapsulation: Once the solar cells are in place, they are encapsulated by placing a layer of high-transparency tempered glass on top of them. This glass helps protect the solar cells from outdoor elements such as humidity and dust.
  4. Junction box attachment: A junction box is then attached to the back of the solar panel to house the wiring connections. This junction box is important for connecting multiple solar panels together in a larger solar array.
  5. Quality control: Before the solar panel is deemed ready for use, it undergoes a series of quality control checks to ensure that it is functioning properly and meets industry standards. This may involve testing the electrical output of the panel and checking for any defects in the assembly.
  6. Packaging and shipping: Once the solar panel has passed all quality control checks, it is packaged and prepared for shipping to customers. The panels are typically shipped in protective packaging to prevent any damage during transit.

Overall, the solar panel assembling process involves several key steps to ensure that the panels are constructed properly and ready for use in generating clean, renewable energy. You can check Growatt Hybrid inverter price in Dubai, in our official site.
