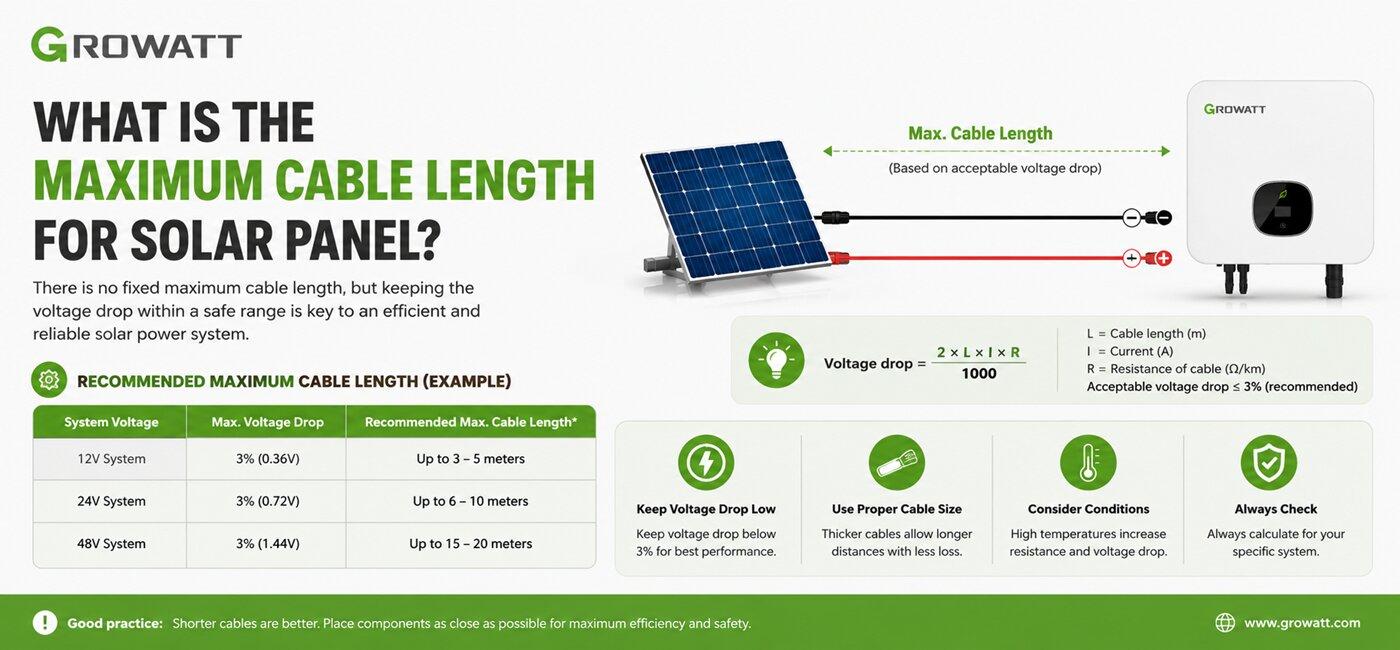

What is the maximum cable length for solar panel?

The maximum cable length for a solar panel depends on various factors, such as the power output of the solar panel, the current flowing through the cable, and the voltage drop allowed. In general, a cable length of up to 100 feet (30 meters) is considered acceptable for most solar panel installations. Keep reading for more information on the length of cables for solar panels.

There are ways to help you use efficiently solar energy by growatt on grid inverter in your daily life.

recommended size of wires  for solar panels



The recommended size of wires for solar panels typically depends on the system size, voltage, and current. However, for most residential solar panel installations, the recommended wire size is typically 10 AWG (American Wire Gauge) for DC (direct current) circuit wiring. For larger systems or longer wire runs, a larger wire size, such as 8 AWG or 6 AWG, may be required to minimize voltage drop and ensure the safe and efficient operation of the system. It is important to consult with a professional electrician or the solar installer to determine the appropriate wire size for your specific solar panel installation.

Here is a table showing the recommended size of wires for solar panels based on the amperage of the panels:

Amperage Wire Size (AWG)
1-3A     18 AWG
3-6A     16 AWG
6-10A    14 AWG
10-15A   12 AWG
15-20A   10 AWG
20-30A   8 AWG
30-40A   6 AWG
40-50A   4 AWG
50-70A   2 AWG
70-100A  1/0 AWG
100-200A 2/0 AWG
200-300A 3/0 AWG
300-400A 4/0 AWG

Note that these recommended wire sizes are based on typical voltage drop calculations and are intended to provide a guideline for selecting the appropriate wire size for your solar panel system. It is always recommended to consult with a professional electrician or solar installer when designing and installing a solar panel system.

solar panel wire size calculator



In order to determine the appropriate wire size for your solar energy system, you will need to consider the following factors:

  • The maximum current output of the solar panels
  • The distance between the solar panels and the charge controller or the solar inverter
  • The maximum allowable voltage drop

Once you have this information, you can use an online wire size calculator in order to determine the recommended wire size for your solar panel system.

length for solar panels cable

The length of the cables for solar panels can vary depending on factors such as the specific installation and setup. However, typical lengths for solar panel cables range from 10 to 20 feet in residential installations. Commercial or industrial installations may require longer cable lengths to accommodate larger arrays or greater distances between panels and inverters. It is always a good idea to consult with a professional solar installer to determine the appropriate cable length for your specific system.

Here we have a table outlining the recommended length for solar panel cables based on the distance between the panels and the charge controller:

Distance (in feet) Recommended Cable Length (in feet)
Up to 10            10
10-20               15
20-30                20
30-40               25
40-50               30
50-60               35
60-70               40
70-80               45
80-90               50
90-100   55

Keep in mind that these recommendations are based on typical voltage drop calculations and industry standards. It is important to consult with an expert or refer to the manufacturer’s guidelines for specific requirements for your solar panel setup.

Check growatt off-grid inverter price list in our official site.

solar cable length calculator

To calculate the appropriate length of solar cables needed for a solar panel installation, you will need to consider the distance between the panels and the charge controller, battery, or inverter. Follow these steps to calculate the required length of solar cables:

  • Measure the distance between your solar panels and the charge controller, battery, or inverter where the cables will be connected.
  • Determine the total distance the cables will need to cover, including any bends or loops in the cable route.
  • Consider the voltage drop factor in your calculations. Voltage drop is important as it can affect the performance of your solar system. A general guideline is to keep the voltage drop below 3%.
  • Use an online solar cable length calculator or a voltage drop calculator to determine the appropriate cable size and length needed for your installation. Input the distance, current, and voltage requirements to get the recommended cable length and size.
  • Once you have the recommended cable size, you can purchase the solar cables of the proper length for your installation.

Remember that it’s always best to consult with a professional solar installer or electrician to ensure that your solar cable lengths are calculated correctly and that your system operates efficiently and safely.

To get more details about growatt solar inverter price list, call our technicians. They can help you on buying the suitable one.
