Description
!

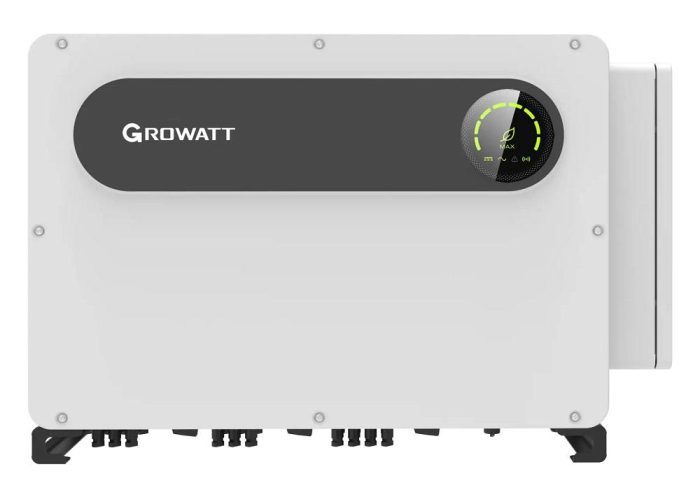

Technical Specifications of Growatt MAX 100KTL3 LV Three-Phase String Inverter
| Feature | Specification |
|---|---|
| Model | Growatt MAX 100KTL3 LV |
| Inverter Type | Three-phase, low-voltage string inverter for commercial/industrial PV systems |
| Max Recommended PV Power | 130,000 W (STC) |
| Max DC Input Voltage | 1,100 V |
| Start Voltage | 250 V |
| Nominal DC Voltage | 620 V |
| MPPT Voltage Range | 180 – 1,000 V |
| Number of MPPT Trackers | 10 |
| Strings per MPPT | 2 |
| Max Input Current per MPPT | 26 A |
| Max Short-Circuit Current/MPPT | 32 A |
| AC Nominal Output Power | 100,000 W |
| Max AC Apparent Power | 110,000 VA |
| Nominal AC Voltage / Grid Range | 230 V / 400 V (310 – 480 V) |
| Grid Frequency Range | 50/60 Hz (45 – 65 Hz) |
| Max Output Current | 158.2 A |
| Adjustable Power Factor | 0.8 leading to 0.8 lagging |
| THDi | < 3% |
| Max Efficiency | 99.0% |
| European Efficiency | 98.6% |
| MPPT Efficiency | 99.9% |
| Protection Features | DC/AC Type II SPD, DC reverse polarity, DC switch, ground-fault, AC short-circuit, anti-islanding, string monitoring, AFCI optional |
| Display & Connectivity | OLED + touch key, RS-485, USB; optional Wi-Fi, GPRS, or 4G |
| Cooling Method | Smart air cooling (fan) |
| Design | Transformerless |
| Protection Rating | IP66 |
| Dimensions (W × H × D) | 1,005 × 660 × 362 mm |
| Weight | 84 kg |
| Noise Emission | < 65 dB(A) |
| Self-Consumption (Night) | < 1 W |
| Operating Altitude | Up to 4,000 m |
| Operating Temperature Range | –30°C to +60°C (derating above 45°C) |
| Humidity Tolerance | 0 – 100% relative humidity |
| Warranty | 5 years standard (extendable) |
| Key Highlights | 10 MPPT trackers, high efficiency, intelligent diagnostics, export limitation, modular design |
Each MPP tracker may function to its highest potential with two strings attached, increasing the system's overall energy output.
- WORKS W/ HIGH POWER MODULES
- High-power and bi-facial modules are best matched with string currents up to 16A and MPPT currents of 32A.
Primary Features
- Good Yields
- Up to 10 MPPTs designed with multiple MPPTs
- appropriate for high-power modules
- maximum DC/AC ratio of 1.5
- Security and Dependability
- AFCI security is optional.
- On the DC and AC sides, Type II SPD
- IP 66 level of protection
- Energy Cost at the Optimal Level
- appropriate for AI and Cu AC cables
- PLC communication is optional with a DC 2 in 1 connection.
igrowatt is a set for growatt inverter for sale. For more information about solar inverter prices, visit our site.
Additional information
| Brand |
Growatt |
|---|---|
| Inverters type |
On Grid Inverters |
| watt |
50000W and above |
2 reviews for Growatt MAX 100KTL3 LV
Input Data (PV)
| Max. DC voltage | 1100V |
| Start voltage | 195V |
| Nominal voltage | 600V |
| MPP voltage range | 180V-1000V |
| No. of MPP trackers | 10 |
| No. of PV strings per MPP tracker | 2 |
| Max. input current per MPP tracker | 32A |
| Max. short-circuit current per MPP tracker | 40A |
Output Data (AC)
| AC nominal power | 125000W |
| Max. AC apparent power | 137500VA |
| Nominal AC voltage (range*) | 220V/380V, 230V/400V (340-440V) |
| AC grid frequency(range*) | 50/60 Hz(45~55Hz/55-65 Hz) |
| Max. output current | 198.5A@400V 208.9A@380V |
| Adjustable power factor | 0.8leading ...0.8lagging |
| THDi | <3% |
| AC grid connection type | 3W+N+PE |
Efficiency
| MAX. efficiency | 98.8% |
| European efficiency | 98.5% |
| MPPT efficiency | 99.9% |
Protection devices
| DC reverse polarity protection | Yes |
| DC switch | Yes |
| AC/DC surge protection | Type II / Type II |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| Ground fault monitoring | Yes |
| String detection | Yes |
| Anti PID function | Optional |
| Arc fault detection (AFCI) | Optional |
General data
| Dimensions (W / H / D) | 970/640/345mm |
| Weight | 84kg |
| Operating temperature range | –30°C ... +60°C |
| Nighttime power consumption | < 1W |
| Topology | Transformerless |
| Cooling | Smart air cooling |
| Protection degree | IP66 |
| Relative humidity | 0~100% |
| Altitude | 4000m |
| DC connection | H4/MC4 (Max.6mm²) |
| AC connection Connector | OT Terminal (Max. 240mm²) |
| Display | LED/WIFI+APP |
| Interfaces: RS485 / USB /PLC/GPRS/4G/WiFi |
Yes/Yes/Optional/Optional/Optional/Optional |
| Warranty: 5 years / 10 years
|
Yes/Optiona |
| CE, UKCA, IEC62116, IEC61727, CQC, VDE0126, VFR2019, EN50549-1/-2, C10/C11, UNE206007, G99 CEI 0-21/0-16, N4105, UNE206006,MEA, PEA, KSC8565 |
|
| * The AC voltage range and frequency range may vary depending on specific country grid standard. All specifications are subject to change without notice. |
|
