Does a solar inverter need to be grounded?

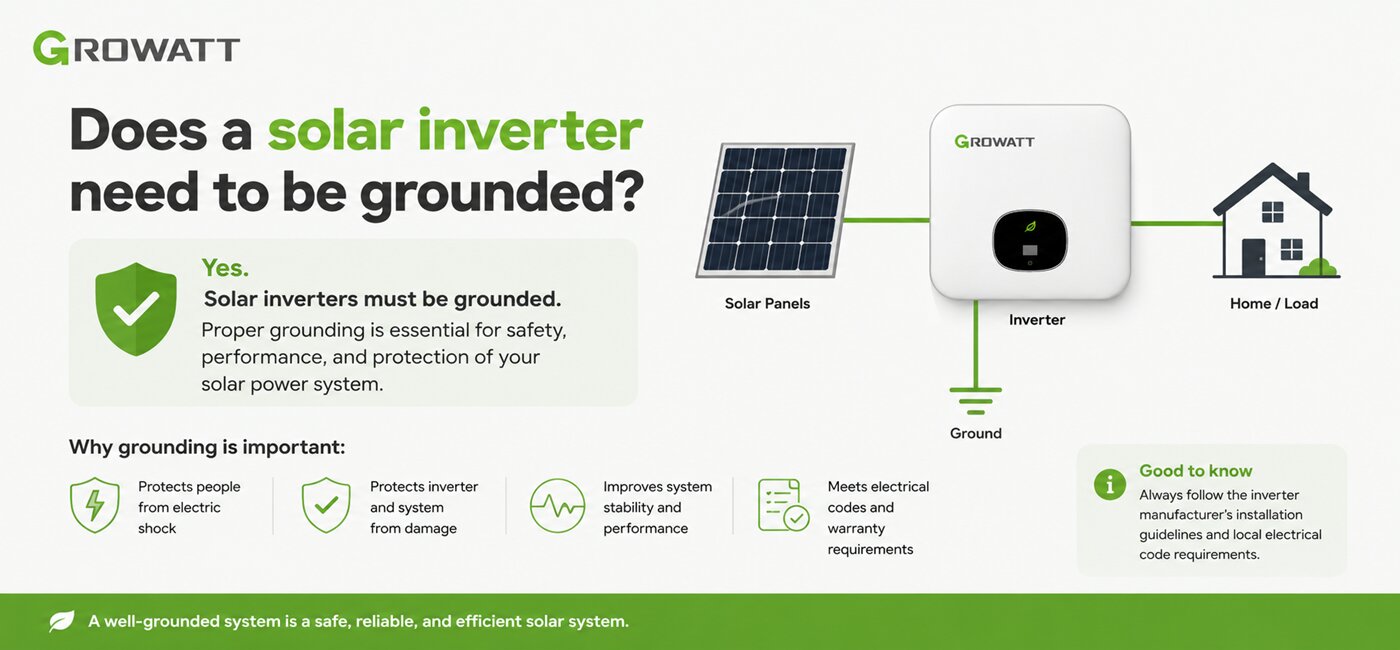

Does a solar inverter need to be grounded

Grounding a solar inverter is referred to as connecting the metal casing of the inverter to the earth, creating a path for extra electrical current to be safely discharged. This concept is an important safety measure that can help you prevent electrical shock and reduce the risk of fire in the event of a fault or surge in the system. By grounding the inverter, any stray currents or faults are directed away from the electrical circuits and safely dissipated into the earth. Throughout this article, we are going to provide you with the reasons behind solar inverter earthing and how to ground the inverter safely.

Why is it important for users to pay attention to earthing a solar inverter

Proper grounding of a solar inverter, like growatt on grid inverter, helps maintain the stability and efficiency of the solar energy system. Grounding provides a reference point for the inverter’s electrical circuits, allowing for accurate measurement and regulation of voltage and current. This helps to maintain the system’s performance and ensures that it functions safely and reliably over time. Without proper grounding, electrical fluctuations and surges could damage the inverter and other components of the solar system.

In addition to safety and performance benefits, grounding a solar inverter is also a requirement set by electrical codes and standards. These regulations are in place to protect both the system and the individuals working with or around the system. Failure to properly ground the inverter could result in fines, insurance issues, and even legal liabilities in the event of an accident or malfunction. Installers and system owners need to stick to these regulations to ensure the longevity and safety of their solar energy systems.

In total, grounding a solar inverter is a vital step in the installation and maintenance of a solar energy system. It provides safety, stability, and compliance with industry standards, ensuring that the system operates efficiently and effectively for years to come. By following best practices for grounding, system owners can protect their investments and enjoy the many benefits of clean, renewable solar energy.

Read the article different types of solar inverters.

7 Vital reasons for grounding a solar inverter

grounding a solar inverters

1- Safety:

Grounding helps protect against electric shocks by providing a path for fault currents to safely dissipate into the earth.

2- Electrical Code Compliance:

Grounding is a requirement in many electrical codes and standards to ensure the safe operation of electrical systems.

3- Equipment Protection:

Grounding helps prevent damage to electrical equipment, including solar inverters, in the event of a fault or electrical surge.

4- System Performance:

It’s one of the most important reason of grounding a solar inverter. Proper grounding can help reduce interference and noise in the electrical system, leading to improved performance and reliability.

5- Lightning Protection:

In the event of a lightning strike, grounding provides a path for the lightning energy to safely dissipate into the ground, protecting the solar inverter and other equipment from damage.

6- Fire Prevention:

Grounding helps minimize the risk of electrical fires by providing a path for fault currents to safely dissipate, reducing the chance of overheating and sparking.

7- Compliance with Warranty Requirements:

Many solar inverter manufacturers require that their products be properly grounded in order to maintain warranty coverage.

A guide on grounding a solar inverter

To earth a solar inverter, it is important to first understand the purpose of earthing in electrical systems. Earthing is a safety measure that helps to prevent electric shocks and fires by providing a path for stray electrical currents to safely dissipate into the ground. In the case of a solar inverter, earthing is important to ensure the safe operation of the system and protect both the equipment and individuals working with it.

One way to earth a solar inverter is to connect it to the grounding system of the building or structure where it is installed. This can be done by using a grounding rod or electrode to create a direct path for electrical currents to flow into the ground. The grounding rod should be buried in the earth at a depth of at least 8 feet to ensure proper contact with the ground and maximum safety.

Another method to earth a solar inverter is to connect it to an existing earthing system that is already in place at the site. This can include metal pipes, water pipes, or other conductive structures that are grounded and provide a safe path for electrical currents to be discharged. It is important to ensure that the connection is secure and that the earthing system is properly maintained to prevent any electrical hazards.

In addition to grounding the Growatt Inverters Dubai itself, it is also important to earth any metal components or enclosures that are part of the system. This includes mounting brackets, casing, and any other metal parts that could potentially become energized in the event of a fault. By ensuring that all metal components are properly grounded, the risk of electric shock or fire can be greatly reduced.

It is important to follow the manufacturer’s guidelines and specifications when earthing a solar inverter to ensure that the system operates both safely and efficiently. Proper earthing can also help to prevent damage to the equipment and increase its longevity. Regular inspections and maintenance of the earthing system can help identify any potential issues or potential hazards before they become a larger problem.

How to avoid double grounding a solar inverter

how to ground solar inverter

  1. Use a double-insulated power tool or appliance: Double-insulated tools and appliances have an extra layer of insulation that eliminates the need for grounding. Make sure to look for the symbol indicating double insulation on the tool or appliance.
  2. Check cords and plugs for damage: Check electrical cords and plugs regularly for any signs of damage or wear. Replace damaged cords or plugs immediately to avoid the risk of double grounding.
  3. Use GFCI outlets: Ground Fault Circuit Interrupter (GFCI) outlets are designed to quickly shut off power in the event of a ground fault. Installing GFCI outlets in areas where double grounding is a potential risk can help prevent electrical accidents.
  4. Avoid using extension cords: Using extension cords can increase the risk of double grounding if not properly grounded. When possible, plug tools and appliances directly into a grounded outlet.
  5. Follow electrical safety guidelines: Make sure to follow proper electrical safety guidelines, such as not using metal ladders near power lines, not operating electrical equipment in wet conditions, and not overloading electrical circuits. These precautions can help prevent double grounding incidents.

igrowattinverter, the best company of providing growatt inverters

In conclusion, earthing a solar inverter is a critical step in making sure of the safe operation of the system and protecting both individuals and equipment from electrical hazards. By following proper earthing procedures and guidelines, the risk of electric shocks, fires, and equipment damage can be greatly minimized. It is important to consult with a qualified electrician or solar installer to ensure that the system is properly earthed and meets all necessary safety standards. To get more details about product such as Growatt 5 kw, growatt hybrid inverter price or On grid 20 kw inverter call our technicians.
