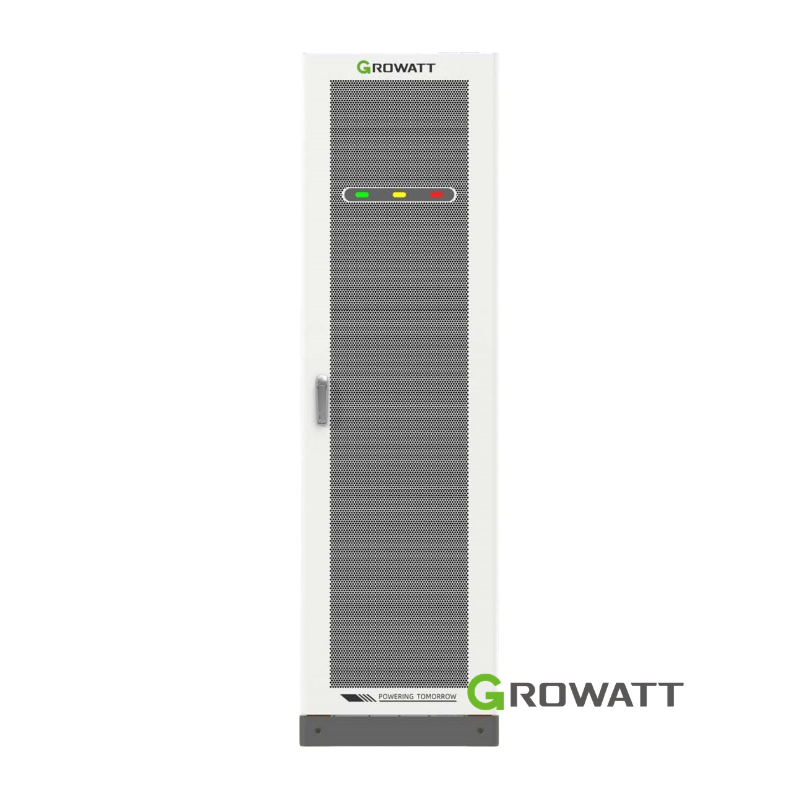

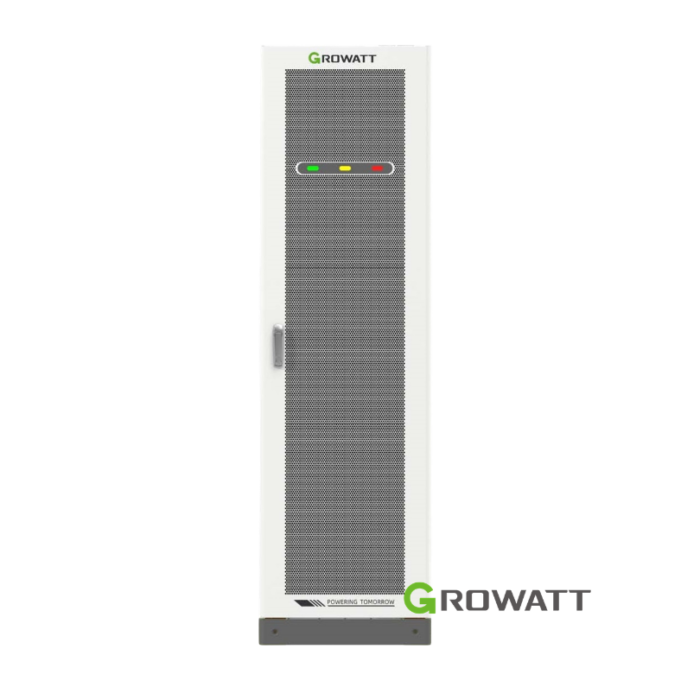

Growatt High Voltage HV Battery Controller AXE 1000100-C1EU Specifications

Specification	Value
Model	Growatt AXE 1000100-C1EU
Controller Type	High Voltage Battery Management Controller (HV BMS)
Nominal Voltage	120 – 1000 V DC input range supported (Works with HV battery systems in this voltage range)
Nominal Capacity	N/A (BMS controller; manages connected HV battery modules)
Usable Capacity	N/A
Operating Voltage	120 – 1000 V DC
Depth of Discharge (DOD)	N/A (battery-dependent)
Charge / Discharge Current	~100 A
Max. Charging / Discharging Power	Depends on connected battery string & inverter (e.g., up to ~50–60 kW depending on config)
Cycle Life	N/A (controller-specific lifespan depends on usage)
System Connection	CAN / RS485 / Modbus
Max. Number of Parallel Units	Up to 10 HV battery modules string
Warranty	10 years

Specification	Value
Installation Type	Wall-mounted / Rack-mounted controller
Dimensions (W/H/D)	400 / 600 / 200 mm
Weight	~35 kg
Protection Rating (IP)	IP55
Operating Temperature	0 °C ~ +50 °C
Storage Temperature*	-20 °C ~ +60 °C
Altitude	< 2000 m
Cooling Method	Forced air / Natural convection
Noise Level	Low (fan / controller electronics)

Specification	Value
Safety & Compliance Standards	CE (EMC), RoHS
Communication Interface	CAN / RS485 / Modbus
Warranty	10 years
