Growatt inverter MOD 10KTL3-X (Pro)

Description

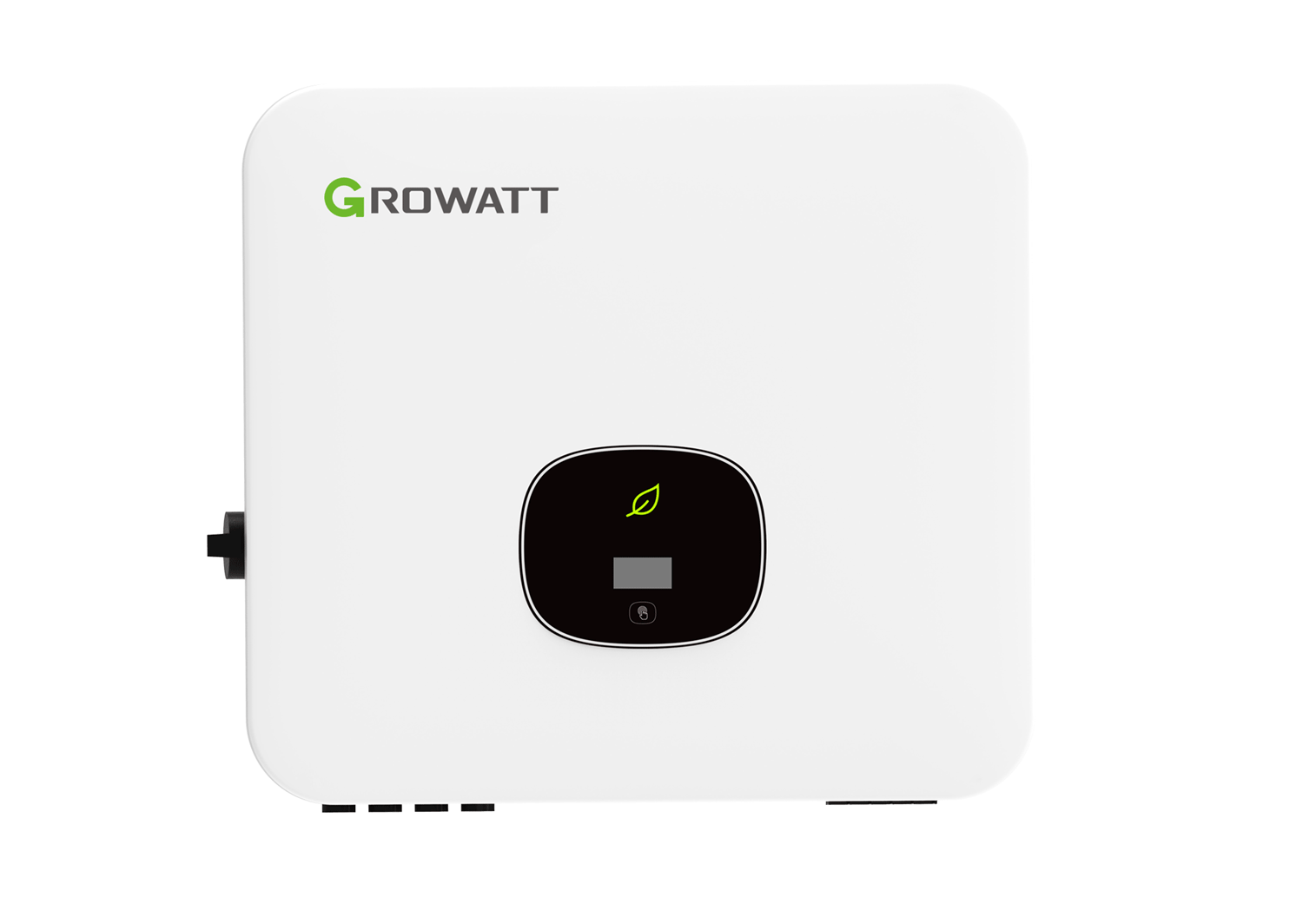

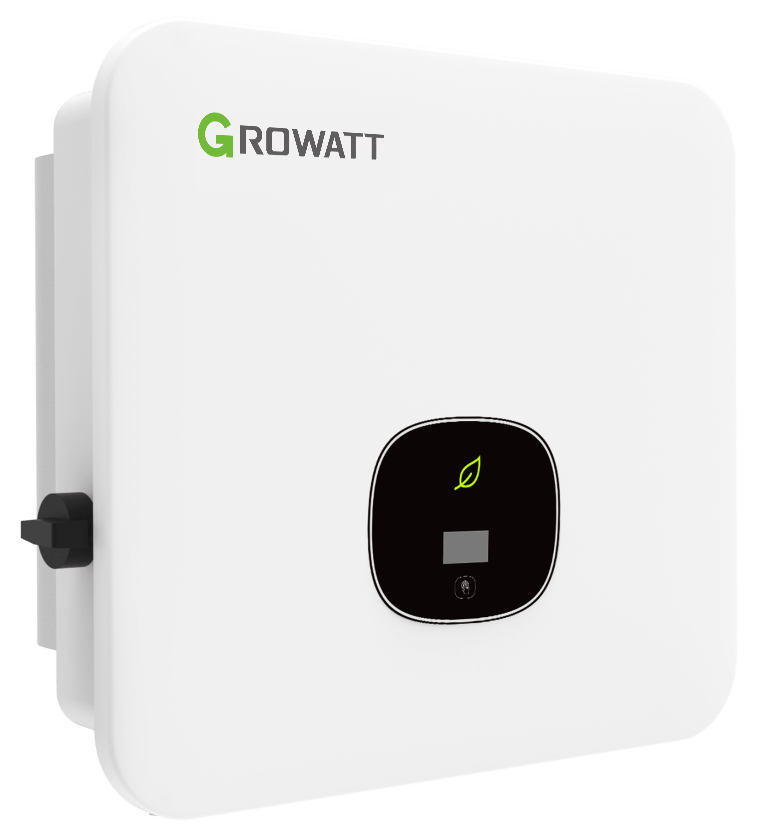

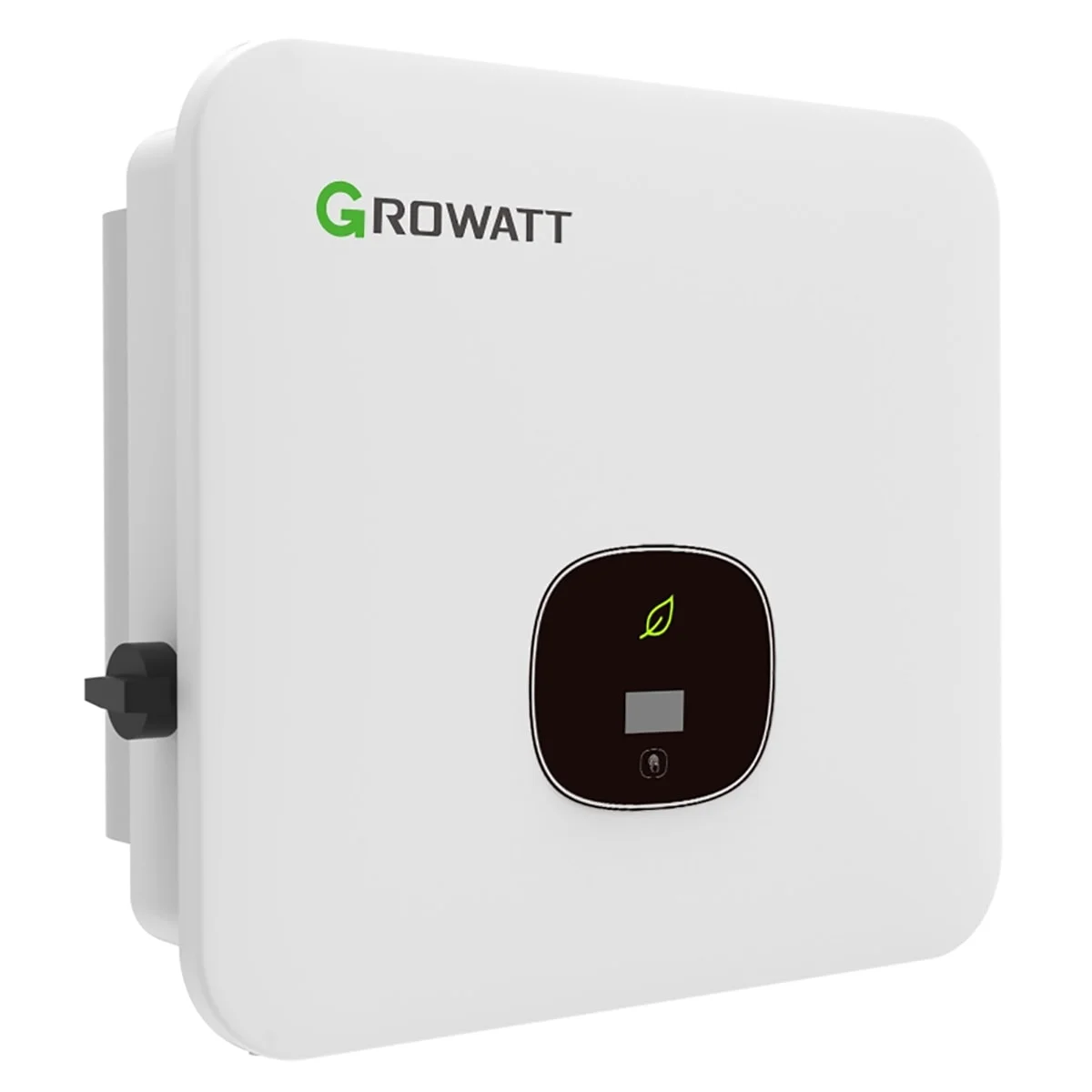

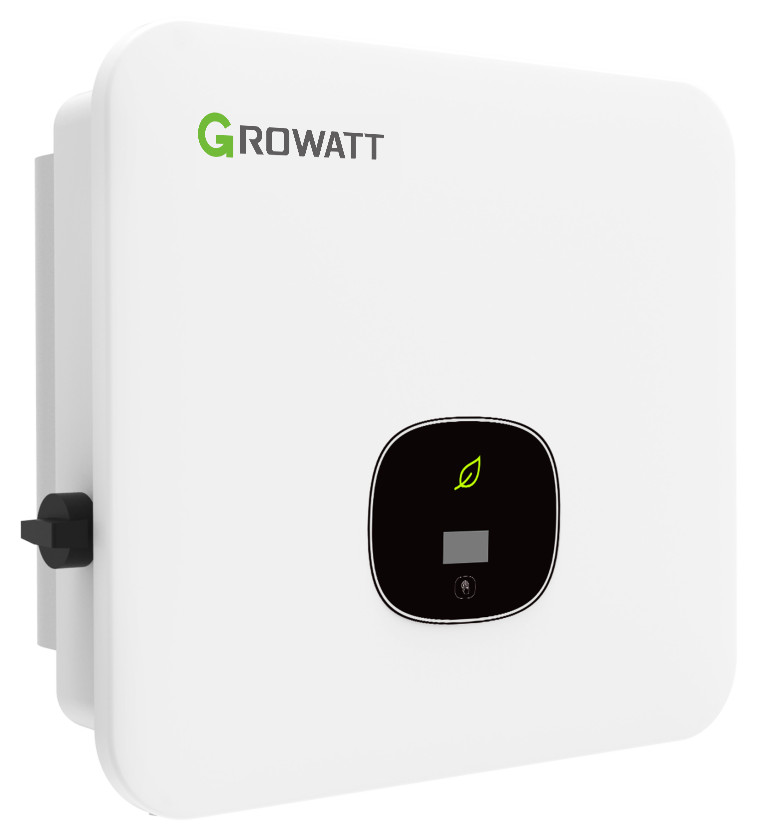

Growatt MOD 10KTL3-X (Pro) – High-Performance 10 kW Three-Phase Inverter

The Growatt MOD 10KTL3-X (Pro) is a compact and efficient three-phase inverter designed for residential and small commercial solar installations. With a nominal AC output of 10 kW and support for up to 15 kW of PV input, it offers an excellent balance between power, reliability, and affordability.

Key Features:

• High Efficiency: Achieves a maximum efficiency of 98.6% and a European efficiency of 98.1%, ensuring optimal energy conversion.

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) channels, each supporting one string, allowing for flexible panel configurations and improved energy harvesting.

• Wide Voltage Range: MPPT voltage ranges from 140 V to 1000 V, with a start-up voltage of 160 V, accommodating various solar panel setups.

• Advanced Protection: Includes Type II surge protection on both AC and DC sides, DC reverse polarity protection, insulation resistance monitoring, ground fault monitoring, and optional Arc Fault Circuit Interruption (AFCI).

• User-Friendly Interface: Features an OLED display with touch buttons and optional Wi-Fi connectivity for remote monitoring via the Growatt Shine app.

• Robust Design: Transformerless topology with natural convection cooling, IP66 protection rating, and an operating temperature range of –25 °C to +60 °C, suitable for diverse environmental conditions.

Global Shipping by Our Company:

As an authorized Growatt distributor, our company offers insured international shipping of the MOD 10KTL3-X (Pro) inverter to regions including Europe, the Middle East, Asia, Africa, and the Americas. We ensure secure packaging and timely delivery to support your solar energy projects worldwide.
