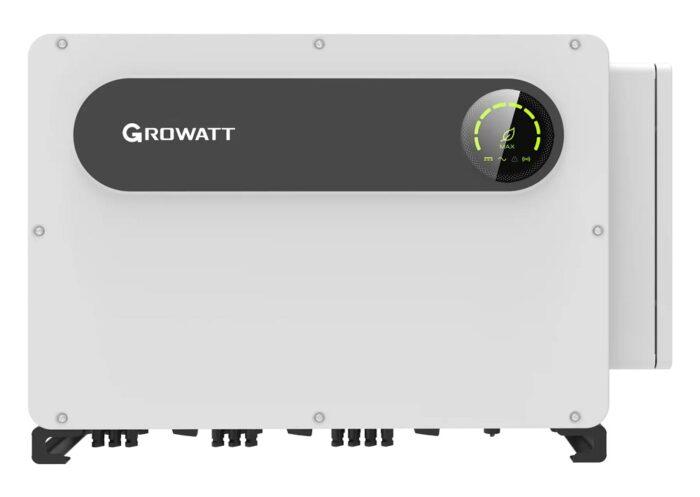

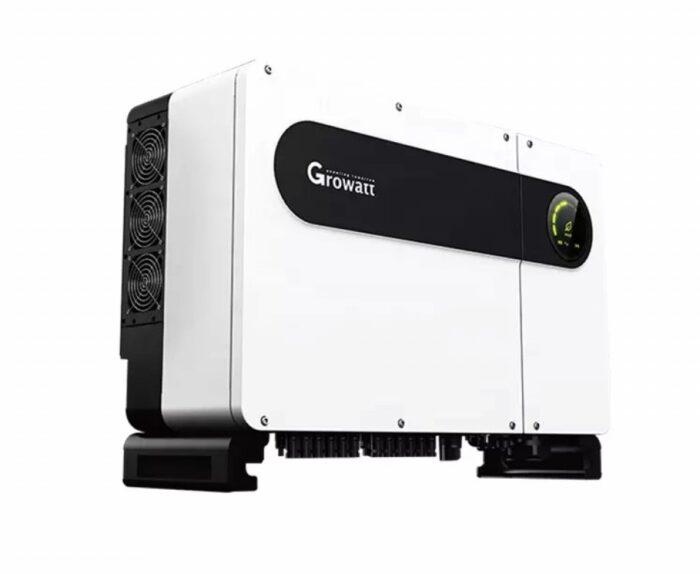

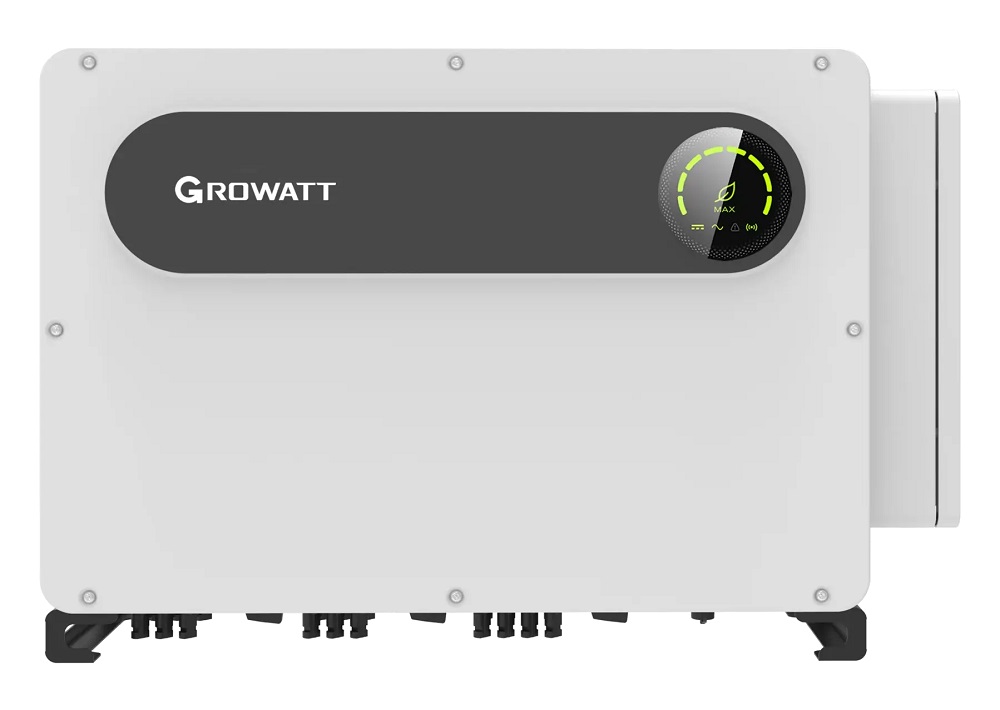

Growatt MAX 125KTL3 LV

(1 customer review)

$4,350

!

Each MPP tracker may function to its highest potential with two strings attached, increasing the system's overall energy output.

  • WORKS W/ HIGH POWER MODULES
  • High-power and bi-facial modules are best matched with string currents up to 16A and MPPT currents of 32A.

Primary Features

  • Good Yields
  • Up to 10 MPPTs designed with multiple MPPTs
  • appropriate for high-power modules
  • maximum DC/AC ratio of 1.5
  • Security and Dependability
  • AFCI security is optional.
  • On the DC and AC sides, Type II SPD
  • IP 66 level of protection
  • Energy Cost at the Optimal Level
  • appropriate for AI and Cu AC cables
  • PLC communication is optional with a DC 2 in 1 connection.

igrowatt is a set for growatt inverter for sale. For more information about solar inverter prices, visit our site.



Brand

Growatt

Inverters type

On Grid Inverters

watt

50000W and above

1 review for Growatt MAX 125KTL3 LV

  1. andre

    rara avis

Add a review

Your email address will not be published. Required fields are marked *

Input Data (PV)

Max. DC voltage 1100V
Start voltage 195V
Nominal voltage 600V
MPP voltage range 180V-1000V
No. of MPP trackers 10
No. of PV strings per MPP tracker 2
Max. input current per MPP tracker 32A
Max. short-circuit current per MPP tracker 40A

Output Data (AC)

AC nominal power 125000W
Max. AC apparent power 137500VA
Nominal AC voltage (range*) 220V/380V, 230V/400V (340-440V)
AC grid frequency(range*) 50/60 Hz(45~55Hz/55-65 Hz)
Max. output current 198.5A@400V 208.9A@380V
Adjustable power factor 0.8leading ...0.8lagging
THDi <3%
AC grid connection type 3W+N+PE

Efficiency

MAX. efficiency 98.8%
European efficiency 98.5%
MPPT efficiency 99.9%

Protection devices

DC reverse polarity protection Yes
DC switch Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring Yes
AC short-circuit protection Yes
Ground fault monitoring Yes
String detection Yes
Anti PID function Optional
Arc fault detection (AFCI) Optional

General data

Dimensions (W / H / D) 970/640/345mm
Weight 84kg
Operating temperature range –30°C ... +60°C
Nighttime power consumption < 1W
Topology Transformerless
Cooling Smart air cooling
Protection degree IP66
Relative humidity 0~100%
Altitude 4000m
DC connection H4/MC4 (Max.6mm²)
AC connection Connector OT Terminal (Max. 240mm²)
Display LED/WIFI+APP
Interfaces: RS485 / USB /PLC/GPRS/4G/WiFi Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years     Yes/Optiona
CE, UKCA, IEC62116, IEC61727, CQC, VDE0126, VFR2019, EN50549-1/-2, C10/C11, UNE206007, G99 CEI 0-21/0-16, N4105, UNE206006,MEA, PEA, KSC8565
* The AC voltage range and frequency range may vary depending on specific country grid standard. All specifications are subject to change without notice.
