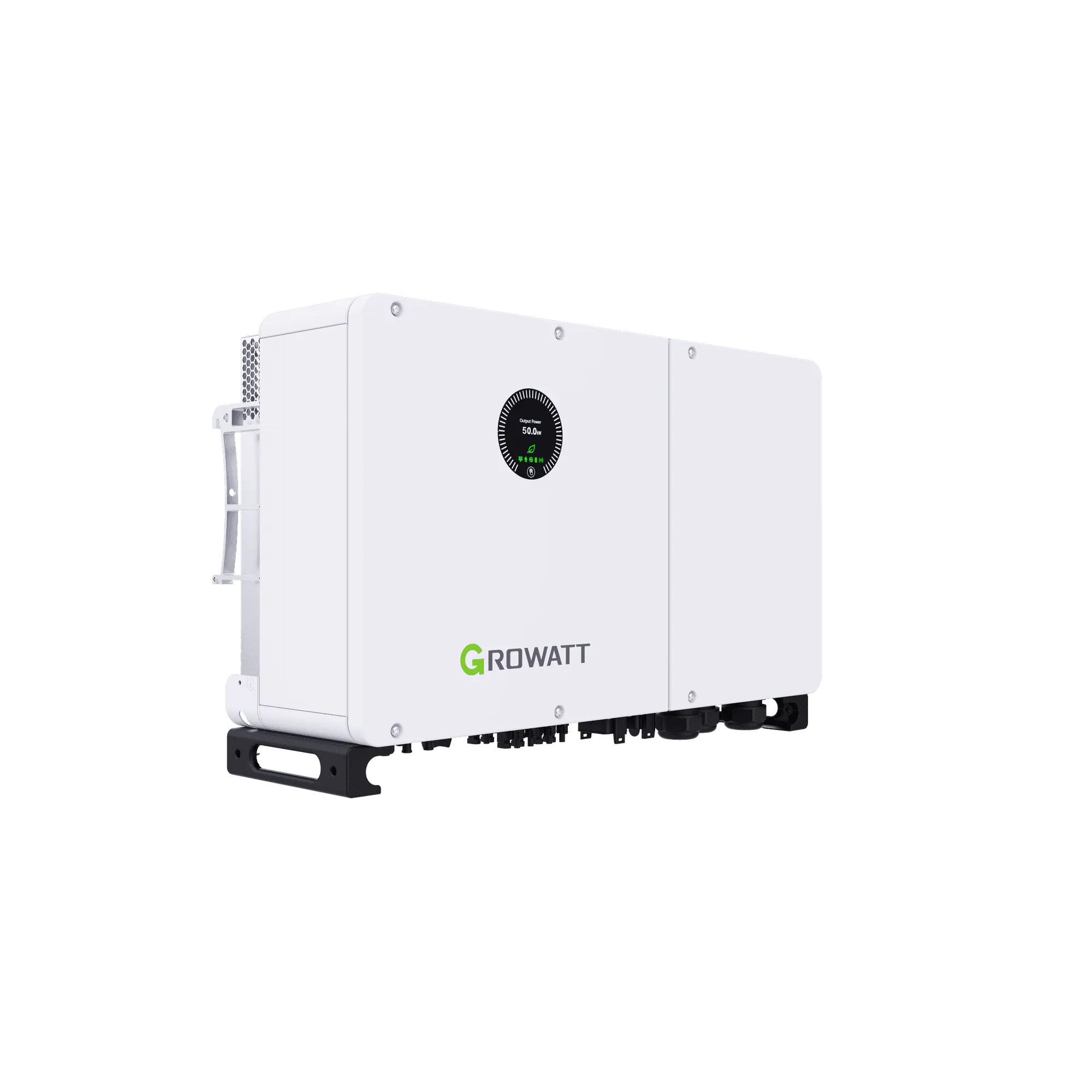

Growatt Inverter WIT 30K-XHU
DOWNLOAD Growatt Inverter WIT 30K-XHU DATASHEET
| Hybrid 30 KW HV
5 Years Warranty |
·Multiple MPPTs and battery input
·Support DG input and smart load function
·Support UPS function and black start function
·Support multi-system operation in parallel in off-grid mode
·Intelligent air cooling, no derating at 50°C ambient temperature
·100% three-phase unbalanced output and 150% off-grid overload capacity
·Strong power grid adaptability, supporting weak grid environments with SCR<1.2
$4,050
The latest price update was on: (October 30, 2025)
Description
| Datasheet | WIT 29.9K-XHU | WIT 30K-XHU | WIT 36K-XHU | WIT 40K-XHU | WIT 50K-XHU |
| Input Data (PV) | |||||
| Max. recommended PV power
(for module STC) |
59.8kW | 60kW | 72kW | 80kW | 100kW |
| Start voltage | 195V | ||||
| Max. DC voltage | 1100V | ||||
| Nominal voltage | 620V | ||||
| MPPT voltage range | 180V-1000V | ||||
| Full load DC voltage range | 375V-850V | 375V-850V | 450V-850V | 500V-850V | 620V-850V |
| Max. input current per MPP tracker | 40A | ||||
| Max. short-circuit current per MPP tracker | 50A | ||||
| No. of PV strings per MPP tracker | 2 | ||||
| No. of MPP trackers | 4 | ||||
| Battery Data (DC) | |||||
| Battery voltage range | 200-900V | ||||
| Full load battery voltage range | 200-800V | 200-800V | 225-800V | 250-800V | 310-800V |
| Recommended battery voltage | 512V | ||||
| No. of battery input | 3 | ||||
| Max. charging/discharging current | 55A*3 | ||||
| BMS communication | RS485/CAN | ||||
| Input/Output AC | |||||
| AC input/output nominal power(Grid) | 59.8kW/29.9kW | 60kW/30kW | 72kW/36kW | 80kW/40kW | 100kW/50kW |
| Max. AC input/output apparent power(Grid) | 59.8kVA/29.9kVA | 66kVA/33kVA | 79.2kVA/39.6kVA | 88kVA/44kVA | 110kVA/55kVA |
| Max. input/output current(Grid) | 90.6A/45.3A | 100A/50A | 120A/60A | 133.3A/66.7A | 166.7A/83.3A |
| Max. input current(GEN/AC couple) | 90.6A/45.3A | 100A/45.5A | 120A/54.5A | 133.3A/60.7A | 166.7A/75.7A |
| Max. continuous
AC passthrough current |
200A | ||||
| Nominal AC voltage/range*1 | 380/400V -15%~10% | ||||
| Nominal AC grid frequency/range | 50Hz/60Hz, 45-55Hz/55-65Hz | ||||
| Power factor(@nominal power) | >0.99 | ||||
| Adjustable power factor | -1…+1 | ||||
| THDi | <3% | ||||
| AC grid connection type | 3P3W+PE/3P4W+PE | ||||
| Backup Power | |||||
| AC nominal output power | 29.9kW | 30kW | 36kW | 40kW | 50kW |
| Max. AC apparent power | 29.9kVA | 45kVA | 54kVA | 60kVA | 75kVA |
| Nominal AC voltage | 220V/230V(L-N), 380V/400V(L-L) | ||||
| Nominal AC frequency | 50/60Hz | ||||
| Max. output current | 68.0A | 68.2A | 81.8A | 91A | 113.6A |
| Overload capability | 1.5 times of rated power, 10s | ||||
| THDv | <3% (@Linear full load) | ||||
| Switch time | ≤10ms | ||||
| Efficiency | |||||
| Max. efficiency | 98.1% | ||||
| Protection Devices | |||||
| DC reverse polarity protection | Yes | ||||
| Battery reverse protection | Yes | ||||
| Insulation resistance monitoring | Yes | ||||
| AC/DC surge protection | Type II | ||||
| AC short-circuit protection | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Grid monitoring | Yes | ||||
| String monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Residual-current monitoring unit | Yes | ||||
| General Data | |||||
| Dimensions (W/H/D) | 920/585/320mm | ||||
| Weight | 90kg | ||||
| Operating temperature range | -30°C – 60°C (>50°C derating) | ||||
| Noise emission | ≤55dB | ||||
| Altitude | 4000m | ||||
| Topology | Transformerless | ||||
| Cooling | Smart air cooling | ||||
| Protection degree | IP66 | ||||
| Relative humidity | 0~95% | ||||
| Interfaces | |||||
| Display | OLED+LED/APP | ||||
| Interfaces | RS485/USB/CAN, WIFI/LAN(Opt) | ||||
| Warranty: 5 / 10 years | Yes/Opt | ||||
| NRS 097-2-1:2017, EN 50549-1, NC RFG, PSE-2018, PTPiREE-2021, IEC 62116, IEC 61727, G99:2020, VDE 4105, IEC/EN 61000-6-1, IEC/EN 61000-6-3, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
Growatt WIT 30K‑XHU Hybrid Inverter – Reliable, High‑Capacity Three‑Phase Power
The Growatt WIT 30K‑XHU is a robust three-phase hybrid inverter designed for commercial and industrial solar-plus-storage systems. With a nominal AC output of 30 kW, backed by up to 60 kW DC input, this inverter supports large solar arrays and ensures stable, efficient energy flow
exceptional PV and Electrical Performance
-
High DC/AC ratio & 4 MPPTs – The inverter handles a DC/AC ratio up to 2.0, enabling optimal energy harvest from diverse panel orientations. Four MPPT channels further maximize yield
-
Maximum efficiency of 98.1–98.4 % – Efficiency peaks at approximately 98.1–98.4%, delivering reliable conversion and boosting ROI .
-
Strong grid and overload support – It offers 100 % three-phase unbalanced output, 110 % continuous overload, and 150 % off-grid overload capacity for 10 s—designed for demanding environments
Advanced Battery and Backup Integration
-
High-voltage battery support – Compatible with batteries ranging from 200 V to 900 V (optimal ~512 V), and three battery inputs each delivering up to 55 A charging/discharging
- Fast UPS & Black Start – Delivers uninterrupted backup with ≤10 ms transfer, plus support for generator input and “smart-load” prioritization during outages
Built to Last
-
Rugged design – Transformerless with smart air cooling, it maintains performance up to 50 °C with no thermal derating
- IP66 protection – Dust- and weather-resistant, suitable for indoor and outdoor installations
- Comprehensive safety systems – Includes DC/AC surge protection (Type II SPD), reverse polarity safeguards, ground-fault and insulation monitoring, active arc-fault detection (AFCI), and anti-islanding protection
Smart Connectivity & Monitoring
-
Multiple communication ports – RS485, USB, CAN are standard; optional Wi‑Fi, GPRS, RF, and LAN. The unit features OLED + LED display and is fully compatible with Growatt Shine monitoring platforms
Global Delivery by Growatt Experts
As an official Growatt distributor, our company offers secure and insured international shipping of the WIT 30K‑XHU to every region—Europe, the Middle East, Asia, Africa, and the Americas. All units are carefully packed to prevent damage during transit, and we manage end-to-end logistics to ensure timely delivery.
