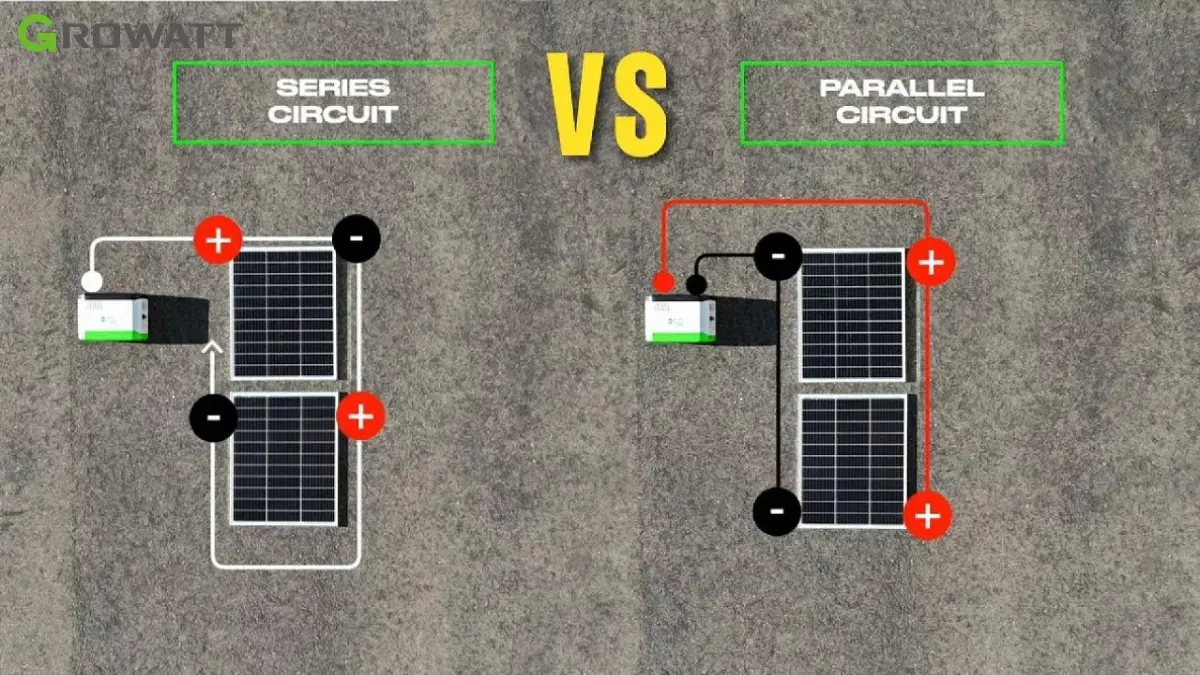

Lithium Battery Connections: Series versus Parallel
One of the frequently asked questions is how to connect lithium batteries either in series or parallel. How you wire your batteries directly impacts the solar lithium battery bank wiring in terms of voltage, capacity, and overall performance of the system.
Series Connection: Increasing Voltage

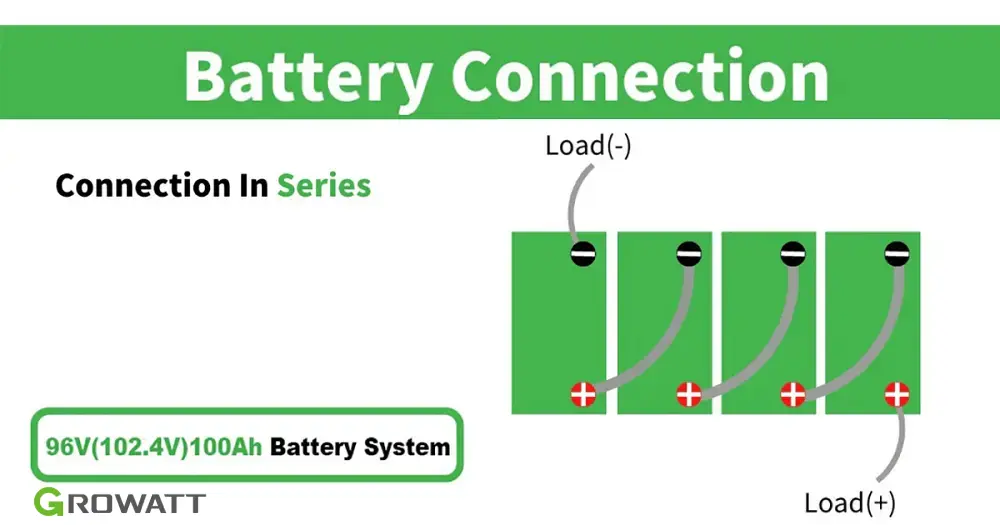

These batteries are also wired in series end-to-end-that is, the plus terminal of one battery is connected to the negative terminal of the next. When in series, the voltage of each battery adds in to the total voltage, whereas the amp-hours capacity remains constant.
Series connection example of solar batteries:
For instance, if one has four 3.7V lithium cells, each with a capacity of 10Ah. After connection in series, voltage sums up to 14.8V (3.7V x 4) but the capacity remains at 10Ah. Where larger batteries are involved, as those in lithium battery packs that are customarily installed with solar panels, the serial connection will enable you to achieve the voltage that your inverter or system requires.
How to connect lithium batteries in series:
Check the voltage and capacity of each; afterwards, connect the positive terminal of the first battery with the negative terminal of the second, continuing this way. Always keep batteries of the same type, age, and capacity to avoid imbalance.
Parallel Connection: Increasing Capacity

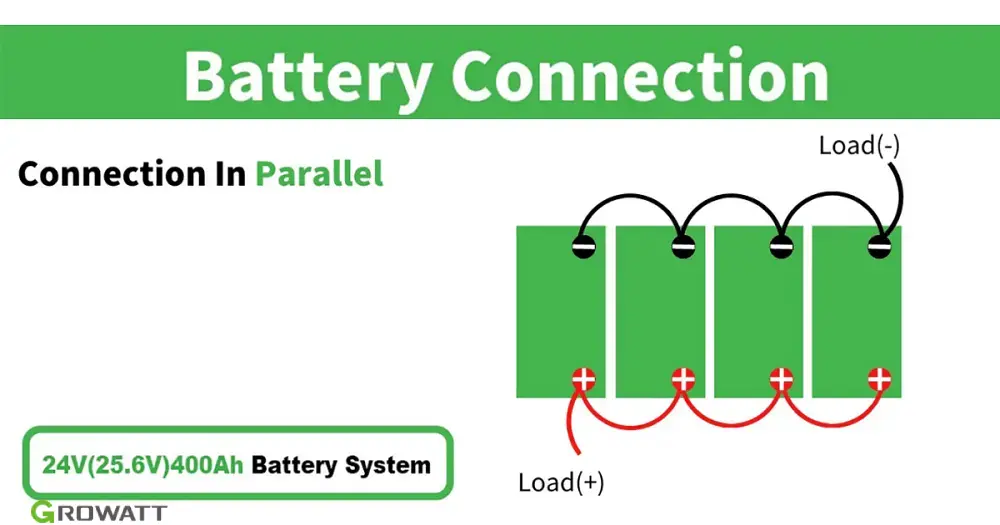

In parallel connections, all the positives are connected and all the negatives are connected. That is how capacity in amp-hours adds while voltage remains constant.
You need to remember the differences between series and parallel connections of batteries: while parallel connections increase the total capacity and, therefore, give longer backup times, the voltage remains at the level of a single battery.
Such parallel connections of several lithium batteries for solar systems are very common in situations when one needs more capacity without increasing the voltage. A good example is four 3.7V, 10Ah batteries connected in parallel; you have 3.7V at 40Ah.
Key Considerations: Voltage, Capacity, and Safety

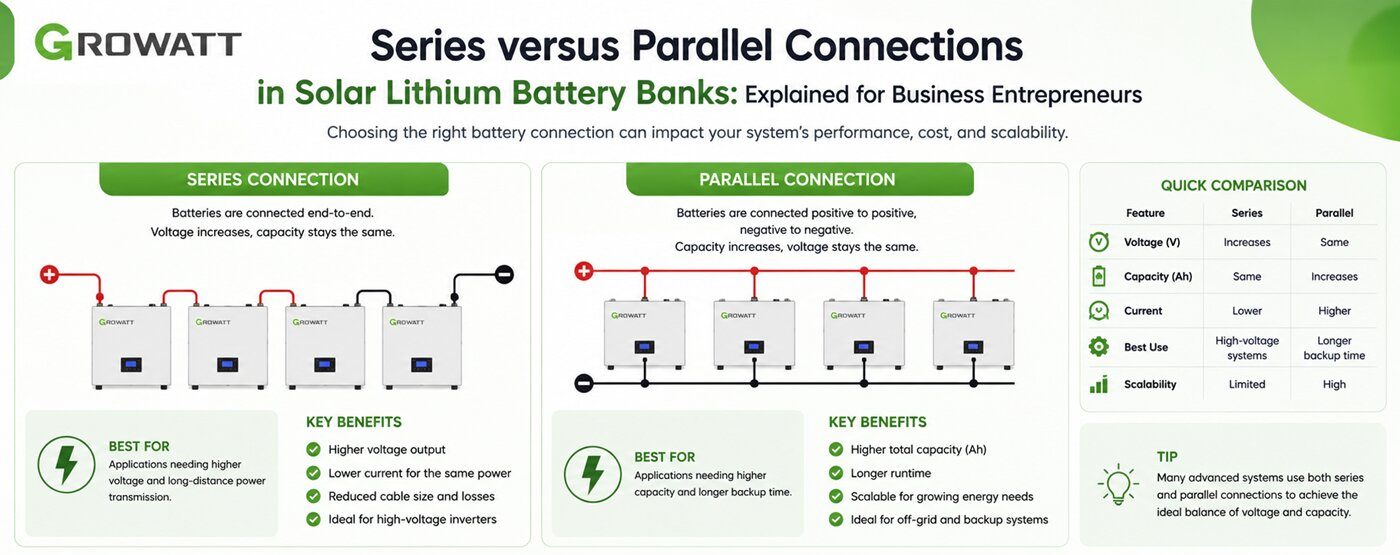

Voltage and capacity of lithium battery banks are calculated, thus it is important to understand such. The general rule:
- Series connection means added voltages but capacitance is the same.
- Capacitances in Parallel Connection add up, voltage is constant.
Correct wiring will ensure that your system works efficiently and safely. Using, for example, the Growatt inverter lithium battery, one would need to ensure that the voltage output of the battery bank corresponds with the inverter input voltage for its optimal performance.
Safety first whenever you connect your solar lithium battery bank: include the appropriate fuses, disconnect switches, and a balance charger for protection of the batteries against overcharge, over-discharge, and thermal runaway.
Practical Examples and Tips
Assume that you are installing a solar panel inverter battery system at a small factory. You can begin with the connection example of the solar battery series:
Connect four 3.2V 50Ah solar lithium batteries in series.
Total voltage: 12.8V (3.2V x 4)
Total capacity: 50Ah
This will be the correct setting if the inverter in your application requires an input voltage of 12V. You can then connect several strings in parallel to increase capacity or voltage.
You should not lightly parallel multiple lithium batteries for a solar system; as much as possible, make sure the batteries are always in balance through a BMS designed for lithium batteries. That helps avoid uneven charging or discharging of your solar lithium battery bank and prolongs its service life.
Why Choosing the Right Connection Matters
Knowing how series versus parallel battery connections work is integral to the performance of your system. Operating in series, it increases voltage and therefore is used in systems that need higher voltages. The parallel connection increases capacity and is ideal for extending backup times or managing loads. Improper selection of the configuration can be very inefficient in the system, reducing its lifespan further, besides giving a safety hazard.
Why choose Growatt Inverter Lithium Battery Systems?
For instance, business people in Iran, Iraq, the UAE, or Syria will be assured of quality and reliable solar panel inverters using reputable brands such as Growatt. The series from Growatt’s growatt inverter lithium batteries are designed for seamless integration into both series and parallel configurations, hence giving you flexibility in system design. The batteries come with robust warranties, verified authenticity, and international after-sales service for critical assets in a large-scale commercial installation.
Growatt also helps you better plan your lithium battery bank voltage and capacity calculation with detailed product datasheets and technical support. What would you do if you were given full freedom to explore and manage technology?
Conclusion
Choosing Between Them During the design of your solar lithium battery system, take into consideration energy needs, system voltage, capacity, and safety standards. First, understand series and parallel connections of lithium batteries or the wiring of a solar lithium battery bank for better optimization of performance and life.
