One of the prime things to take into consideration when delving deep into solar energy regard involves the inverter. The inverter changes direct current from the solar panels into alternating current, which is what homes and businesses use. Sizing your solar inverter and on grid solar inverter is very important for efficiency but also pertains to longevity. In this article, we are going to find out how to calculate inverter size for solar installations and help you get the right tool to fit your energy needs.
What is an Inverter and Why is Sizing Important?
An inverter is the heart of a solar power system. It converts DC to AC, as well as optimizes energy production and manages the flow of electricity. If the inverter is too small, it will not handle the load and may shut down. Too large, and you’re paying for capacity that you may not be using, among other technical issues. In light of this, inverter size calculation should be paramount in anyone’s solar consideration.
How Do I Calculate What Size Inverter I Need?
First, just a couple of main components determine why you would need a certain size inverter: your energy needs and the output of the solar panels, system characteristics.
1. Calculate Your Energy Needs
Calculate how much energy you use in a day. You can refer to your utility bill for this, which will give you an idea of your average daily kWh usage. This is the most important factor in ascertaining the size you will need.
2. Calculate Solar Panel Output
Determine how many watts and the number of solar panels you will be installing. For example, assume you have eight 350W panels, then your total wattage would be(8* 350W = 2800W) or 2.8kW. This number will become important in the inverter sizing equation.
3. Account for System Losses
Everything from shading, to inefficiencies in the system will take away from the total energy output. A popular rule of thumb is to count on roughly 25% of potential losses from a solar energy system. Thus, continuing our example above you’d want to capture the estimated panel output for these loses:
2.8kW * (1 – 0.25) = 2.1kW

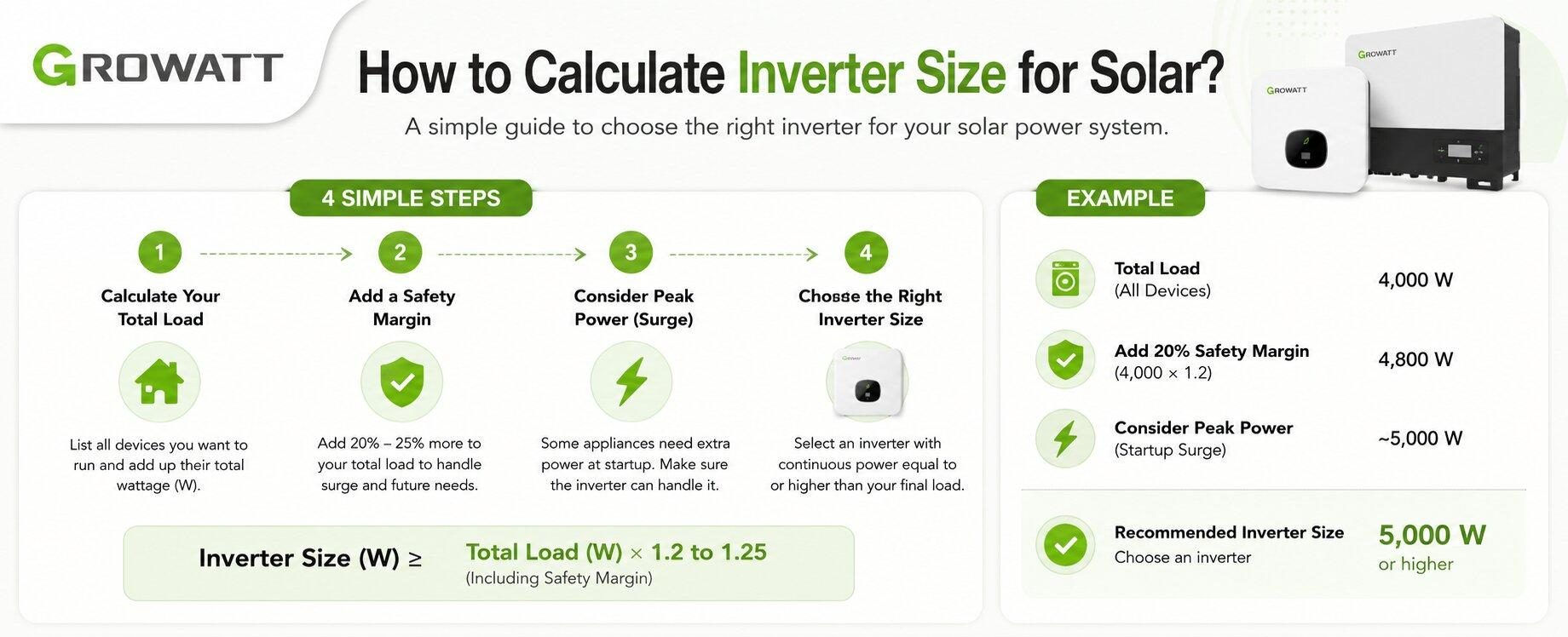

Sizing an Inverter
Now that we have assessed our energy needs and calculated how much energy we can achieve from the solar panels with all the losses factored in, we can now size the appropriate inverter size.
Most solar inverters, including brands like the Growatt hybrid inverter, come in discrete sizes measured in terms of single or multiple kilowatts (kW). Common sizes range between 1kW and upwards over 10kW. In order to accurately size your inverter, here is a very simple formula: projectiles
Inverter Size = Total Solar Panel Output after losses or Desired battery output if there is any
If you consume 10 kWh, approximately, every day, then you will need an inverter that can effectively handle that energy use. You may need to have a big inverter should you expect to use more energy during peak hours than allow for that excess generation capacity.
How Do I Calculate My Solar Inverter?
You can look back at the specific needs of your system from adjustments we previously considered. More formally, the steps include:
1. Daily Energy Consumption (kWh)
You can take your metric off utility bills.
2. Sun Hours
The amount of useful sun hours throughout your area; varies by location and even season. If your area averaged 5 sun hours, you would use that to make the calculation for the size.
3. Sizing Formula
Inverter Size kW=Daily Energy Consumption (kWh)Sun Hours (h)
Using the example from above, requiring 10 kWh of energy in a day:
2 kW=10 (kWh)5 (h)
Solar Inverter Sizing Calculations
When sizing the inverter, consider the following aspects for your final selection:
Margin for Expansion
If you are likely to expand your solar array in the future, get an inverter that allows for this likely addition. For example, if you are likely to add some more panels, correspondingly increase the capacity of your inverter.
Compatibility with the Battery
In the case of using a hybrid solar power inverter for battery charging, then the rating has to be compatible with your system’s battery bank to ensure effective charge and discharge cycles. Feel free to go and explore specifications from the pv inverter Growatt product line in light of compatibility and performance.
Simultaneous Loads
Determine how many appliances could be drawing power at the same time in your home or business, and how many of them might need a larger starting surge to operate, such as refrigerators or air conditioning units. It is that starting power which may greatly affect the sizing decision.
Inverter sizing for solar installations is a three-fold process: analysis of one’s needs and the matching of those needs with the outputs of solar panels, considering growth in the future. As systems like the Growatt hybrid inverter become more popular, correct sizing becomes paramount to assure performance, reliability, and efficiency.
You can also consult solar inverter suppliers for customized solutions provided your household or business needs. With due time given to weighing these factors thoughtfully, you are in a position to arrive at an appropriate solar power system that will meet your energy needs with great efficiency and sustainability. Let it be remembered, that effective calculation and diligence in the setup of the system are the keys toward unlocking the full potential of solar energy.
FAQ
What is the role of the inverter in a solar power system?
The inverter is essential in a solar power system as it converts direct current (DC) from solar panels into alternating current (AC), which is used by homes and businesses. It also optimizes energy production and manages the flow of electricity, making proper sizing crucial for efficiency and longevity.
How do I determine the right size of inverter for my solar installation?
To calculate the right inverter size, assess your daily energy consumption (measured in kWh) from your utility bills, determine the total output of your solar panels, and account for system losses (typically around 25%). Use the formula:
Inverter Size kW=Daily Energy Consumption (kWh)Sun Hours (h)
Why is it important to consider future expansion when sizing an inverter?
Considering future expansion is important because if you plan to add more solar panels later, it’s beneficial to choose an inverter with a larger capacity now. This approach saves you from having to replace the inverter in the future and ensures that your system can handle increased energy loads efficiently.
