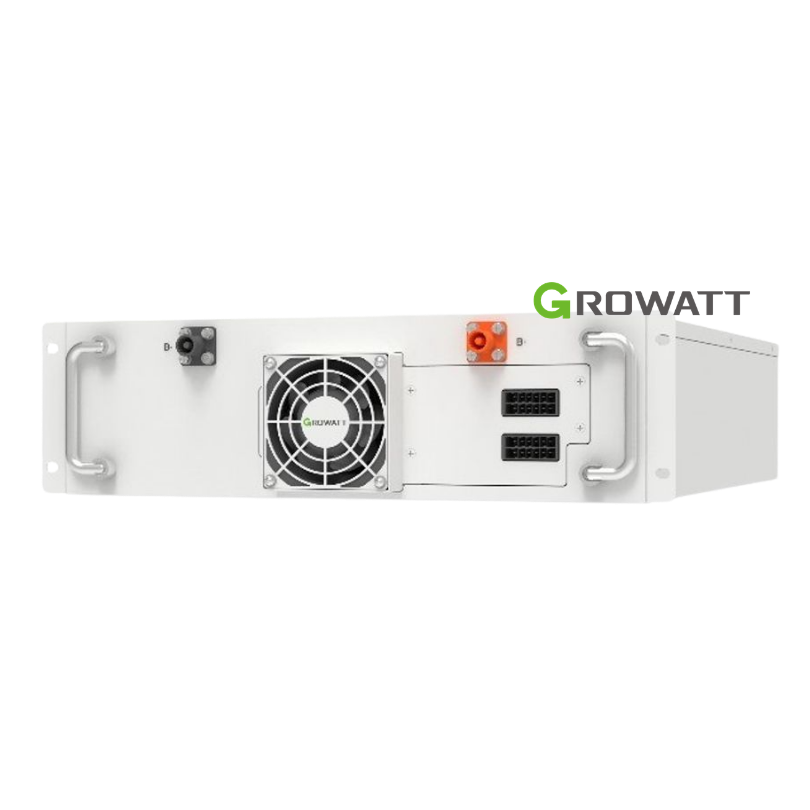

Growatt High Voltage LiFePO4 HV Battery-AXE 5.0H-E1
The latest price update was on: (March 12, 2026)
Description
Growatt HV Battery AXE 5.0H-E1 Specifications
| Specification | Value |
|---|---|
| Model |
AXE 5.0H-E1 |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage |
≈ 51.2 V |
| Nominal Capacity | 5.0 kWh |
| Usable Capacity | ≈ 4.5 kWh |
| Operating Voltage |
≈ 48 – 57.6 V |
| Depth of Discharge (DOD) | High DOD (≈ 90 % typical for LiFePO₄ HV systems) |
| Charge / Discharge Current | ~100 A |
| Max. Charging / Discharging Power | System dependent (up to ~60 kW continuous) |
| Cycle Life | ≥ 6000 cycles |
| System Connection | CAN / RS485 communication interfaces |
| Max. Number of Parallel Units |
Up to 10 units |
| Warranty | Up to 10 years |
General & Environmental Data
| Specification | Value |
|---|---|
| Installation Type | Wall or rack-mounted |
| Dimensions (W/H/D) | ~440 × 812 × 265 mm |
| Weight | ≤ 120 kg |
| Protection Rating (IP) | IP20 (indoor / commercial) |
| Operating Temperature | -25 °C ~ +55 °C |
| Storage Temperature* | -20 °C ~ +60 °C (*suggested for long term) |
| Altitude | < 2000 m above sea level |
| Cooling Method | Natural convection |
| Noise Level | Silent operation |
Certifications & Compliance
| Specification | Value |
|---|---|
| Safety & Compliance Standards | CE, RoHS, IEC62619, UN38.3 (battery modules) |
| Communication Interface | CAN / RS485 |
| Warranty | 10 years (manufacturer typical) |
