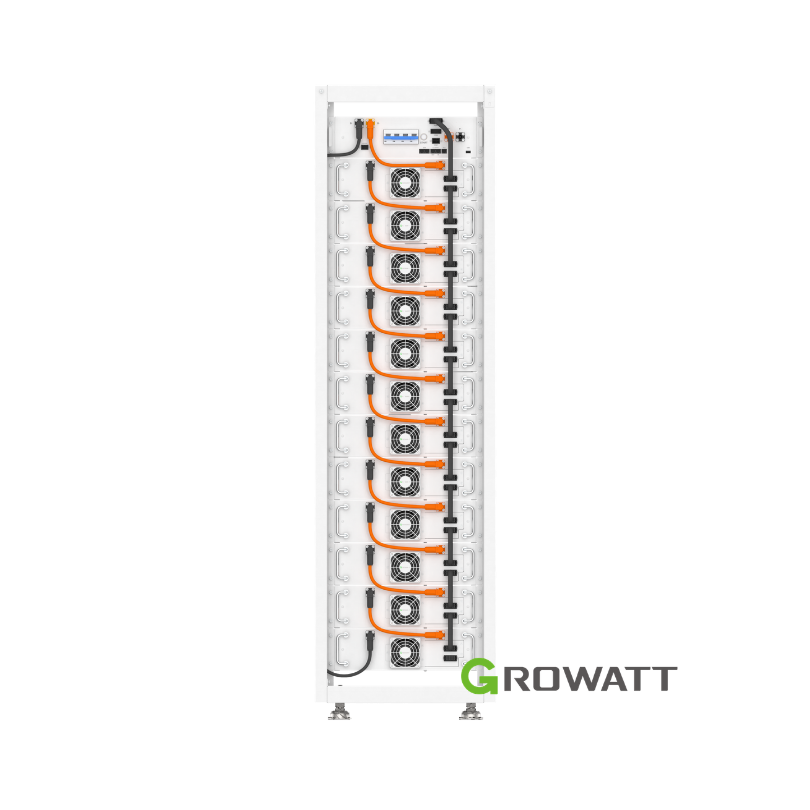

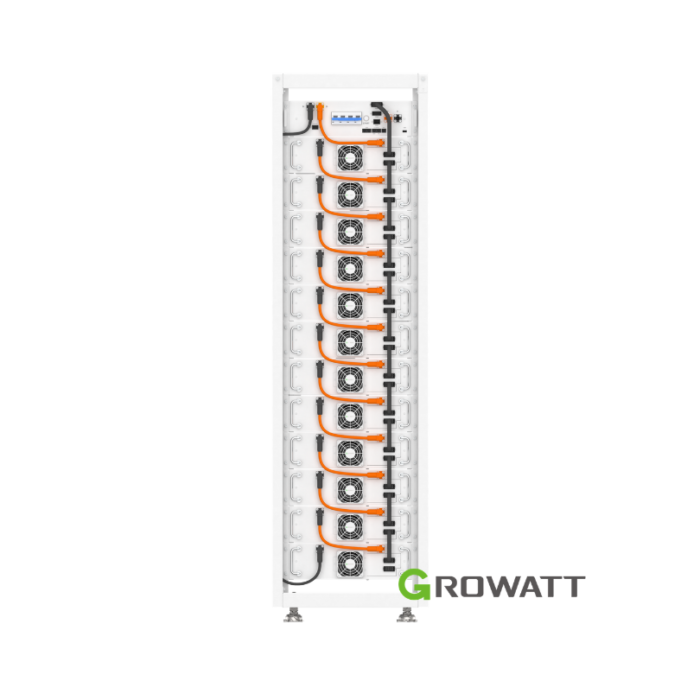

Growatt HV Battery Rack AXE 60.0H-RE1EU Specifications

Specification	Value
Model	AXE 60.0H-RE1EU
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage	665.6 V
Nominal Capacity	60.0 kWh
Usable Capacity	≈ 54 kWh
Operating Voltage	603.2-738.4V
Depth of Discharge (DOD)	High DOD (≈ 90 % typical for LiFePO₄ HV systems)
Charge / Discharge Current	~100 A
Max. Charging / Discharging Power	System dependent (up to ~60 kW continuous)
Cycle Life	≥ 6000 cycles
System Connection	CAN / RS485 communication interfaces
Max. Number of Parallel Units	Scalable – defined by AXE HV controller
Warranty	Up to 10 years

Specification	Value
Installation Type	Floor-mounted rack
Dimensions (W/H/D)	570/1964/660mm
Weight	≤ 690 kg
Protection Rating (IP)	IP20
Operating Temperature	-25 °C ~ +55 °C
Storage Temperature*	-20 °C ~ +60 °C (*suggested for long term)
Altitude	< 2000 m above sea level
Cooling Method	Air cooling / fan assisted (HV rack)
Noise Level	< 60-65 dB (typical)

Specification	Value
Safety & Compliance Standards	CE, RoHS, IEC62619, IEC62477, UN38.3 (battery modules)
Communication Interface	CAN / RS485
Warranty	10 years (manufacturer typical)
