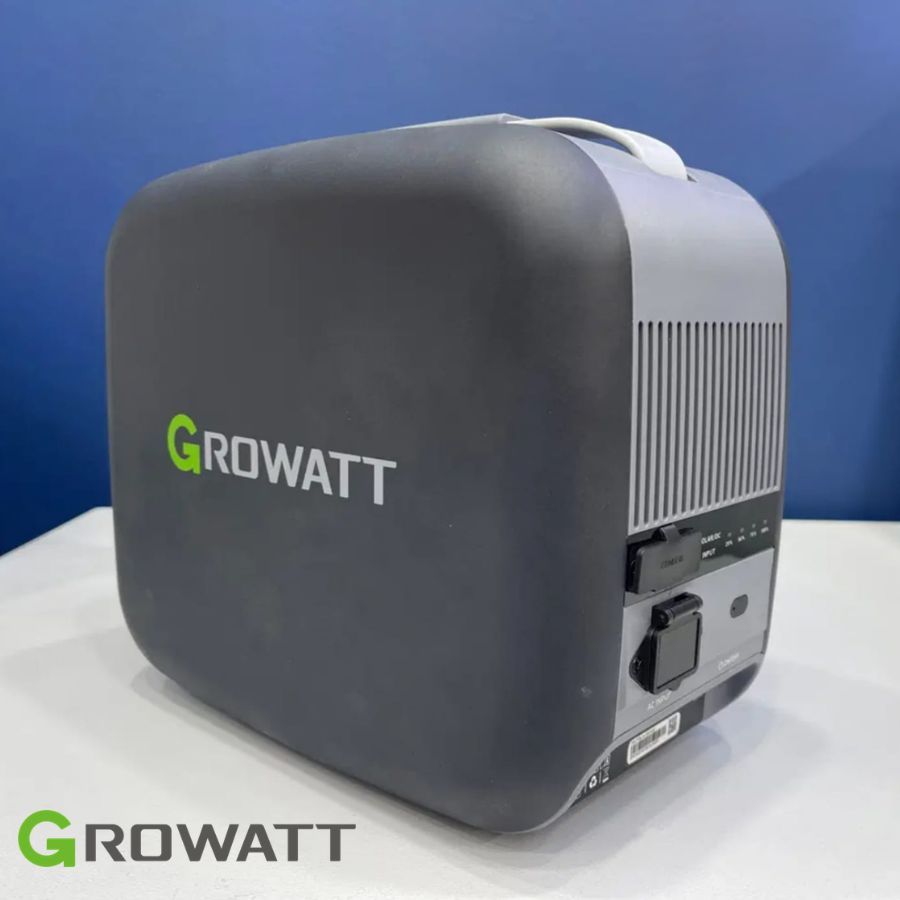

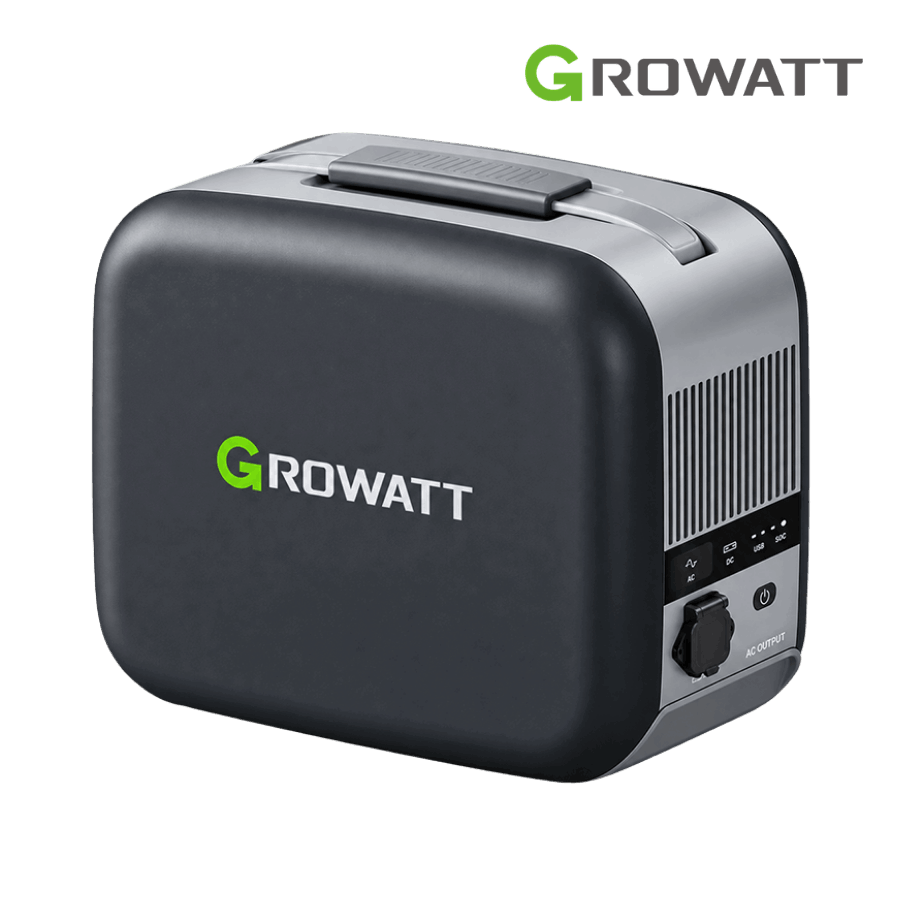

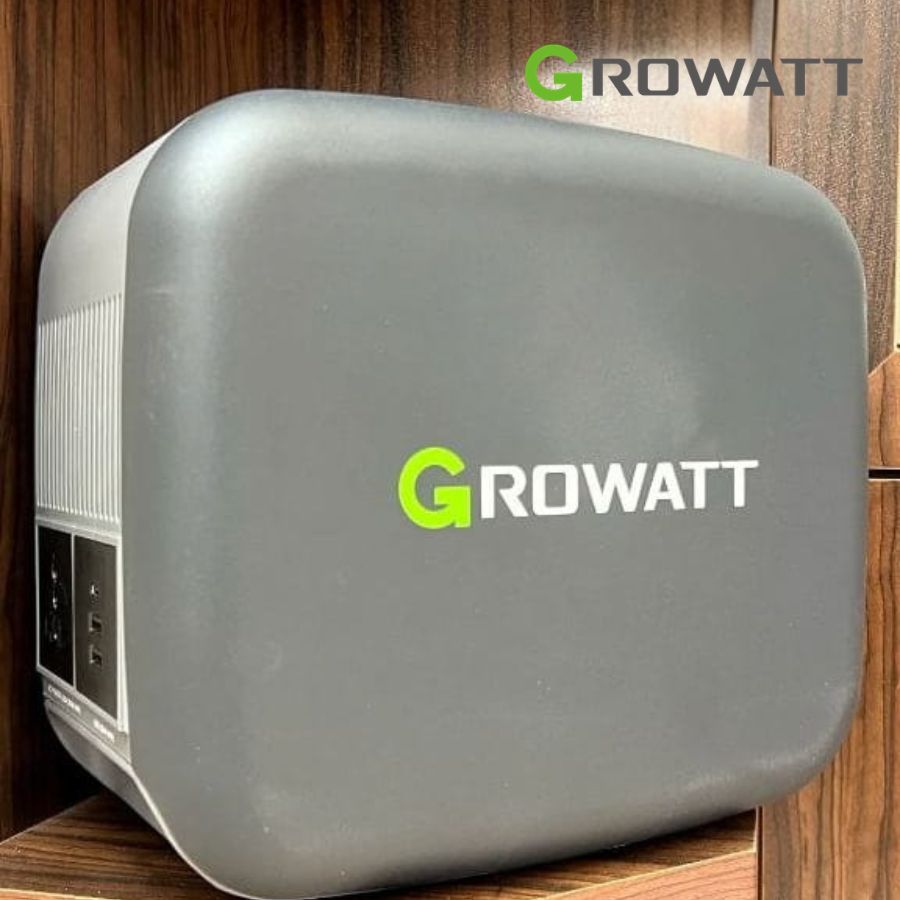

Growatt INFINITY 1000 Portable Power Station
- 1004Wh battery capacity
- LiFePO4 battery technology
- 4000+ cycles battery lifecycle
- 300W rated AC output
- 600W peak AC output
- 200W maximum PV input
- 12–60V PV input voltage range
- 220V AC output voltage
- <12ms UPS switching time
- 2 × USB-A outputs
Description
Growatt INFINITY 1000 Technical Data:
Battery Specifications
At the heart of this 1000Wh portable power station is a LiFePO4 battery designed for repeated charge and discharge cycles. The battery provides 1004Wh of energy and has a rated capacity of 314Ah.
| Battery Specification | Value |
|---|---|
| Battery Energy | 1004Wh |
| Battery Capacity | 314Ah |
| Battery Chemistry | LiFePO4 |
| Battery Lifecycle | 4000+ Cycles |
The LiFePO4 battery technology makes this portable energy storage system suitable for applications that require frequent charging and discharging.
AC and Solar Charging
The power station can be charged from an AC source or through a compatible solar PV input. The maximum solar input is 200W, with an operating PV voltage range of 12–60V.
| Charging Specification | Value |
|---|---|
| AC Input Voltage | 220V |
| AC Input Frequency | 45–65Hz |
| AC Input Power | 300W |
| Maximum PV Input Power | 200W |
| PV Input Voltage Range | 12–60V |
| Full Recharge Time | Within 3.5 hours |
The solar input makes the unit suitable for use as a portable solar power station, allowing the battery to be recharged from a compatible photovoltaic source.
AC, USB-A and USB-C Outputs
For powering electronic equipment, the unit provides a 220V AC output alongside USB charging ports. Its continuous AC output is rated at 300W, with a peak capability of 600W.
| Output Specification | Value |
|---|---|
| AC Output | 1 × 220V, 50/60Hz |
| Rated AC Output Power | 300W |
| Peak AC Output Power | 600W |
| USB-A Output | 2 × 5/9/12V, 20W Max. |
| USB-C Output | 1 × 5/9/12V, 20W Max. |
This combination of AC and USB connections allows the backup power source to support compatible electronic devices without requiring separate power supplies for every device.
UPS and Backup Power Function
The built-in UPS function is one of the important features of this portable battery backup system. When operating in UPS mode, the specified switching time is less than 12ms.
| UPS / System Function | Specification |
|---|---|
| UPS Mode | Available |
| UPS Switching Time | <12ms |
| Bypass Mode | Available |
| Trickle Charging | Available |
| Cooling System | Fan Forced-Cooling |
The short transfer time allows the unit to be used as a UPS power station for compatible equipment where minimizing interruption during a power failure is important.
Protection and Battery Monitoring
The integrated protection system covers several operating conditions, including excessive current, overvoltage, overload and excessive temperature.
| Protection / Monitoring Feature | Specification |
|---|---|
| Overload Protection (OLP) | Yes |
| Overvoltage Protection (OVP) | Yes |
| Overcurrent Protection (OCP) | Yes |
| Overtemperature Protection (OTP) | Yes |
| Low Voltage Protection (LVP) | Yes |
| Battery SOC Indicator | 4 LEDs |
Four LED indicators provide a visual indication of the battery’s state of charge, while the integrated protection functions help protect the power system during operation.
Growatt INFINITY 1000 Selection Checklist
| What to Check | Specification |
|---|---|
| Energy Capacity | 1004Wh |
| Battery Capacity | 314Ah |
| Battery Type | LiFePO4 |
| Battery Cycle Life | 4000+ Cycles |
| Rated AC Output | 300W |
| Peak AC Output | 600W |
| AC Output Voltage | 220V |
| Maximum Solar Input | 200W |
| PV Input Voltage | 12–60V |
| USB-A Outputs | 2 × 20W Max. |
| USB-C Output | 1 × 20W Max. |
| UPS Transfer Time | <12ms |
| Bypass Mode | Available |
| Trickle Charging | Available |
| Full Recharge Time | Within 3.5 hours |
FAQs
The Growatt INFINITY 1000 has a 1004Wh energy capacity and a 314Ah battery capacity. It uses LiFePO4 battery technology and is rated for more than 4000 charge cycles.
A 1000Wh portable power station can provide stored electrical power for compatible devices during outdoor activities, off-grid use, temporary power needs and emergency backup situations. The INFINITY 1000 has a 300W rated AC output and 600W peak output.
Yes. The unit supports photovoltaic charging with a maximum PV input of 200W and a PV input voltage range of 12V to 60V.
According to the product specifications, the unit can be fully recharged within approximately 3.5 hours.
Yes. It supports UPS operation with a specified switching time of less than 12ms, making it suitable for compatible equipment that requires short transfer times during power interruptions.
The unit provides one 220V AC output, two USB-A outputs and one USB-C output. The USB-A and USB-C outputs support 5V, 9V and 12V operation with a maximum output of 20W.
The portable power station uses a LiFePO4 battery with an energy capacity of 1004Wh, a capacity of 314Ah and a rated lifecycle of more than 4000 cycles.
The power system includes overload protection, overvoltage protection, overcurrent protection, overtemperature protection and low-voltage protection. Four LEDs are provided for battery state-of-charge indication.
Yes. Its 1004Wh battery, 300W rated AC output, UPS function and <12ms switching time make it suitable for compatible backup-power applications within its specified output limits. What is the battery capacity of the Growatt INFINITY 1000?
1 review for Growatt INFINITY 1000 Portable Power Station
1 review for Growatt INFINITY 1000 Portable Power Station
-
How long can the Growatt INFINITY 1000 power my devices?
jadin –
How long can the Growatt INFINITY 1000 power my devices?
webmaster –
It depends on the device’s power consumption, but the INFINITY 1000 can provide reliable backup power for a wide range of home, outdoor, and emergency applications.
