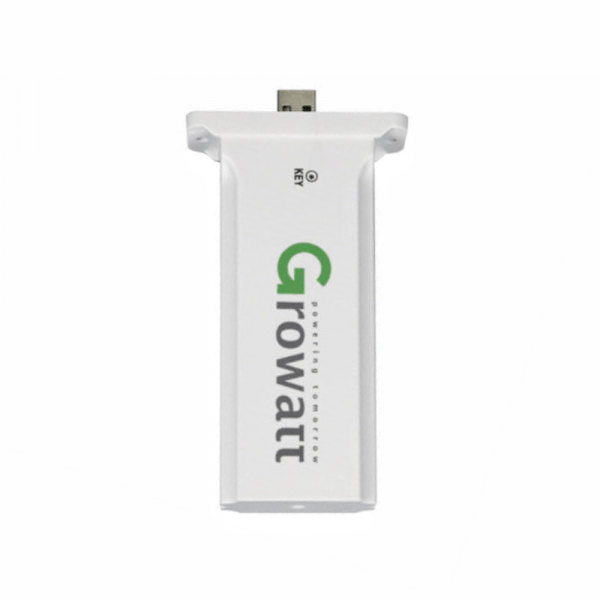

Name: Growatt SHINE WIFI-F price ( October 2025 )
Price: 35 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Description

Technical Specifications of Growatt SHINE WIFI-F Monitoring Device

Feature	Specification
Model	Growatt SHINE WIFI-F
Device Type	WiFi monitoring and data logger module for Growatt inverters
Compatibility	Designed for specific Growatt inverter models with USB communication port
Connection to Inverter	Plug-and-play via USB interface
Wireless Standard	IEEE 802.11 b/g/n WiFi
Frequency Band	2.4 GHz
Data Transmission Interval	Configurable (default every 5 minutes)
Cloud Connection	Growatt ShineServer platform and ShinePhone mobile app
Monitoring Functions	Real-time data monitoring, daily/monthly/yearly reports, remote firmware update
Configuration Method	Using ShinePhone app (Android/iOS)
Max Connection Distance	Up to 50 m (open space; shorter in obstructed environments)
Power Supply	Powered directly from inverter via USB
LED Indicators	WiFi connection status, communication status
Firmware Update	OTA (Over-The-Air) updates via server
Operating Temperature Range	–20°C to +65°C
Operating Humidity	0 – 95% non-condensing
Protection Rating	IP30 (indoor installation only)
Dimensions (W × H × D)	72 × 31 × 15 mm
Weight	~ 40 g
Warranty	2 years standard
Key Highlights	Plug-and-play USB design, stable WiFi, remote monitoring, quick setup

Through smartphone applications or web portals, consumers may now obtain real-time data about their solar power generation, energy consumption, and system condition. Inverters have been more connected with communication technologies like Wi-Fi in recent years.

Cable-free, easy-to-installation
Communication distance up to 50m
Built-in memory for up to one month of data
Online monitoring and maintenance

Key features:

General Data

Dimensions(L/W/H) : 135/79/29mm

Weight: 63g

Manual language: English, Chinese

Wireless Parameters

Wireless type: WiFi

Wireless standard: 802.11 b/g/n

Transmit power : 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); 802.11n: +15dBm(Max.)

Receiver sensitivity : 802.11b: -89dBm(Max.); 802.11g: -81dBm(Max.); 802.11n: -71dBm(Max.)

Hardware Parameters

Data interface : UART: 9600bps; Ethernet: 100Mbps

Operating voltage : 5V (+/-15%)

Operating current: 1A

Operating temperature: -20°C~+65°C

Storage temperature: -40°C~+70°C

Network type: AP (Acess Point); station mode (with soft AP)

Security mechanisms: WEP / WPA-PSK / WPA2-PSK

1 review for Growatt SHINE WIFI-F

welsing – November 1, 2023

Rated 5 out of 5
bewildering

Add a review

General Data

Dimensions(L/W/H)	135/79/29mm
Weight	63g
Manual language	English, Chinese

Wireless Parameters

Wireless type	WiFi
Wireless standard	802.11 b/g/n
Transmit power	802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); 802.11n: +15dBm(Max.)
Receiver sensitivity	802.11b: -89dBm(Max.); 802.11g: -81dBm(Max.); 802.11n: -71dBm(Max.)

Hardware Parameters

Data interface	UART: 9600bps; Ethernet: 100Mbps
Operating voltage	5V (+/-15%)
Operating current	1A
Operating temperature	-20°C~+65°C
Storage temperature	40°C~+70°C
Network type	AP (Acess Point); station mode (with soft AP
Security mechanisms	WEP / WPA-PSK / WPA2-PSK
Encryption	WEP64 / WEP128 / TKIP / AES

Application on Parameters

Supported servers	ShineServer
Inverter communication	USB A-type
Sever Communication	WiFi via router (Modbus TCP protocol)
Supported Routers	Wireless router (Include 3G router)
User Configuration Interface	Wireless web server (Internet Browser)
Max. Communication Range	100m
Data transmission interval	5 minutes
Default Server URL	server.growatt.com
