The world is gradually shifting towards renewable sources of energy and has made solar panels mainstream choices both for residential and commercial purposes. Moreover, the performance and efficiency of solar panels are not only gauged by the photovoltaic cells but also by the solar panel structure design. This paper discusses several aspects related to the structural design of solar panels, including calculations, support structures, types, and key software.
Design of the Solar Panel Structure: Importance
It is of utmost importance that the structure of the solar panel and solar panel inverter battery is designed in a way to allow very long-lasting and efficient installation of the solar panels. A well-engineered structure increases the efficiency of the solar panels by providing a perfect angle and orientation, stability in environmental factors, ease of maintenance. It must be a sufficient design to resist the structural effect of the wind load, snow load, and seismic event on a solar panel.

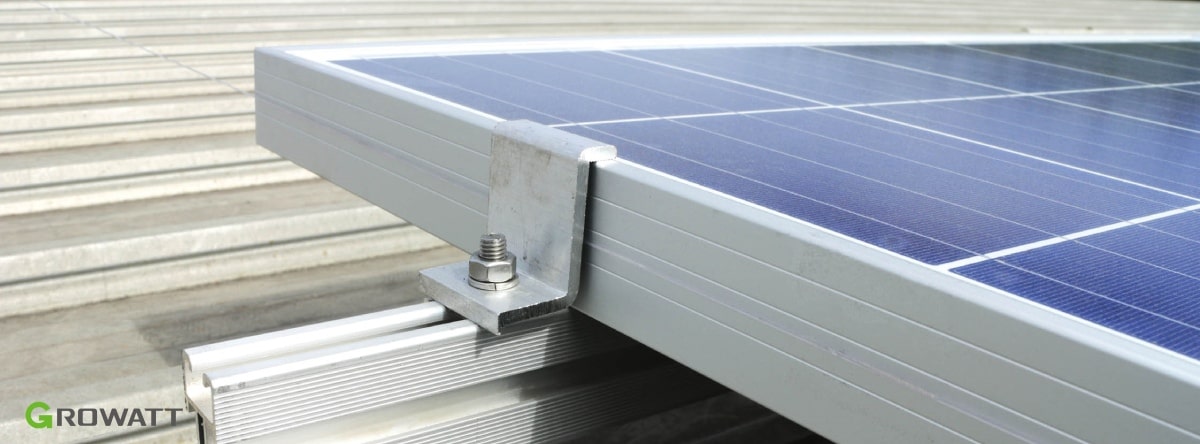

Design of Solar Panel Supporting Structure
The design of the support structure forms the very vital elements of durability and stability in all solar installations. The supports can also be featuring fixed, adjustable, or even tracking system features based on the needs that a particular installation seeks to satisfy. Fixed will, no doubt pop especially in the residences while at the commercial setups; tracking -basically tracing the route of the sun-may be common in that it optimizes energy captured.
The most important considerations in the design of a solar panel supporting structure are load issues: static loads, such as the weight of panels and supporting materials, and dynamic loads including wind, snow, and seismic forces. Calculations should be properly done to ensure the structure will bear all loads without affecting safety and performance. Usual solar panel structure design calculations involve determination of maximum load-bearing capacity required at the location of the installation.

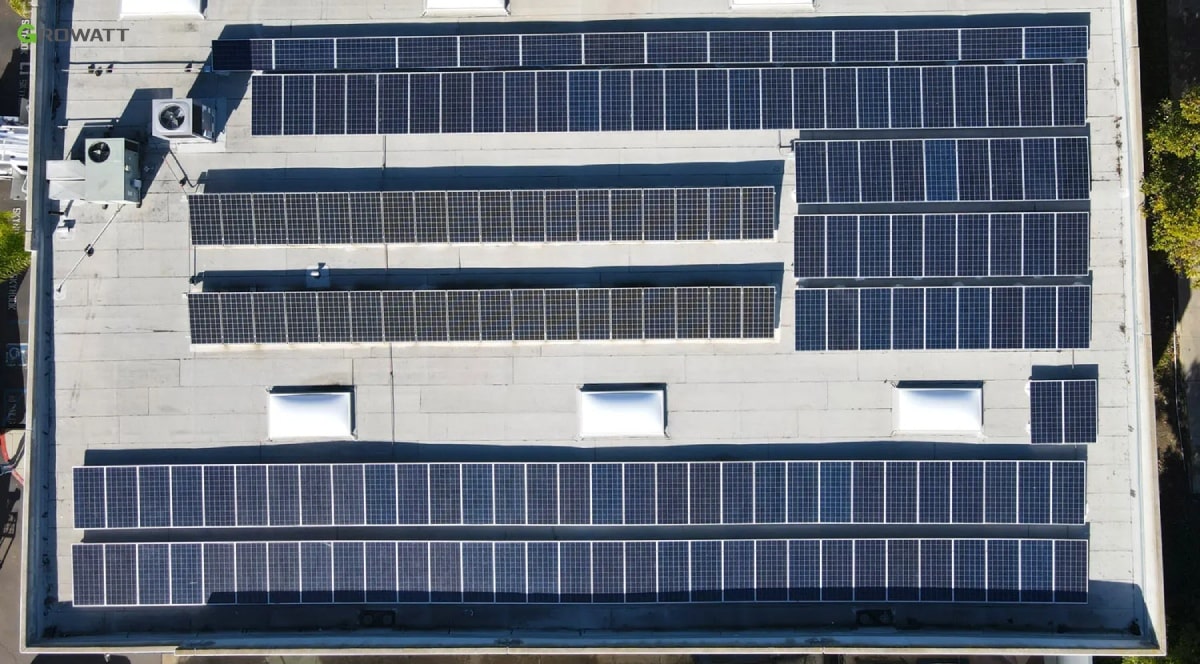

Types of Solar Panel Structures
There is a wide range of solar panel structures that best fit different applications.
1. Ground-Mounted Structures
They are fixed installations and mounted right on the grounds. In these, large-scale solar farms suit very well.
2. Roof-Mounted Structures
The most commonly used structure for residences, designed basically to sit atop rooftops. They come with configurations such as flush-mounted systems, and elevated.
3. Tracking Systems
These are sophisticated structures that, throughout the day, alter the angle of the panels to achieve better sunlight exposure for maximum energy production.
4. Floating Solar Structures
This is a new water body installation method that serves dual purposes: it produces energy and reduces water evaporation.
Solar System Structure Design
The design of a solar system structure refers to the overall framework that will support solar panels and hybrid solar inverter. This includes the mounting system, racking components, and any hardware. The design must ensure all elements work in concert to support the panels effectively, considering aesthetic elements as well, especially for residential applications.

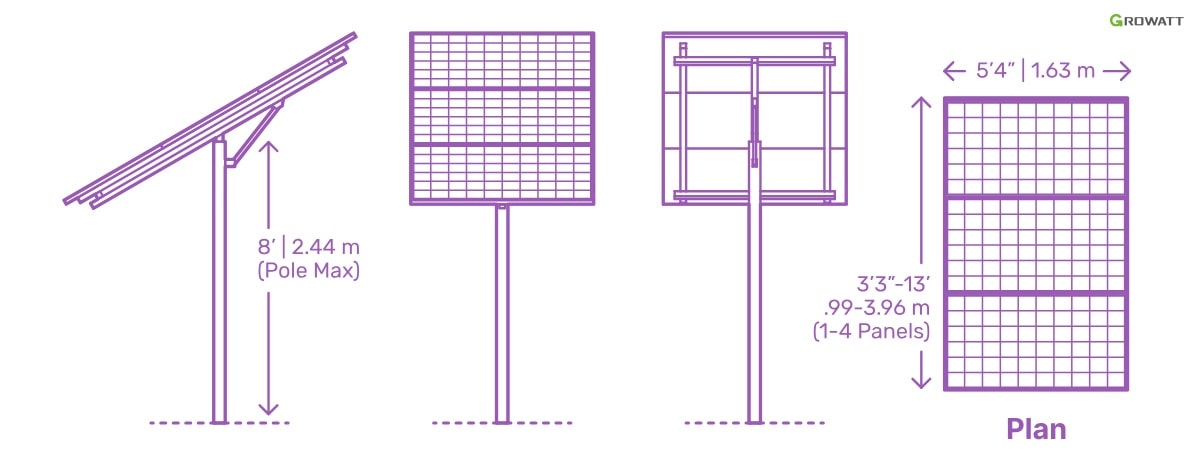

Solar Panel Structure Drawing
Drawing the solar panel structure forms a part of the entire design process. In such cases, drawings are done to visualize the installation, dimensions required, angles, and supports that may be necessary. This is also going to be very detailed because now this is what will communicate the design specifications with the contractors and make sure everything fits together the way it should.
Solar Panel Structure Design Software
In this respect, many of them rely on solar panel structure design software, as this can simplify the process of designing. Specialized software will also enable the users to do advanced calculations, correct drawings, and simulate performances in diverse realistic situations. Some of the popular and general programs are very likely to also include load analysis, verification of structure, and optimization of angles for maximum exposure to sunlight.
Solar Panel Structure Design Online
With the advancement in technology, various tools are available online that can facilitate designing the structure of a solar panel by putting in certain parameters and getting specific design suggestions along with calculations. Small business owners and house owners will find online design tools very useful and feasible options for non-engineering backgrounds.

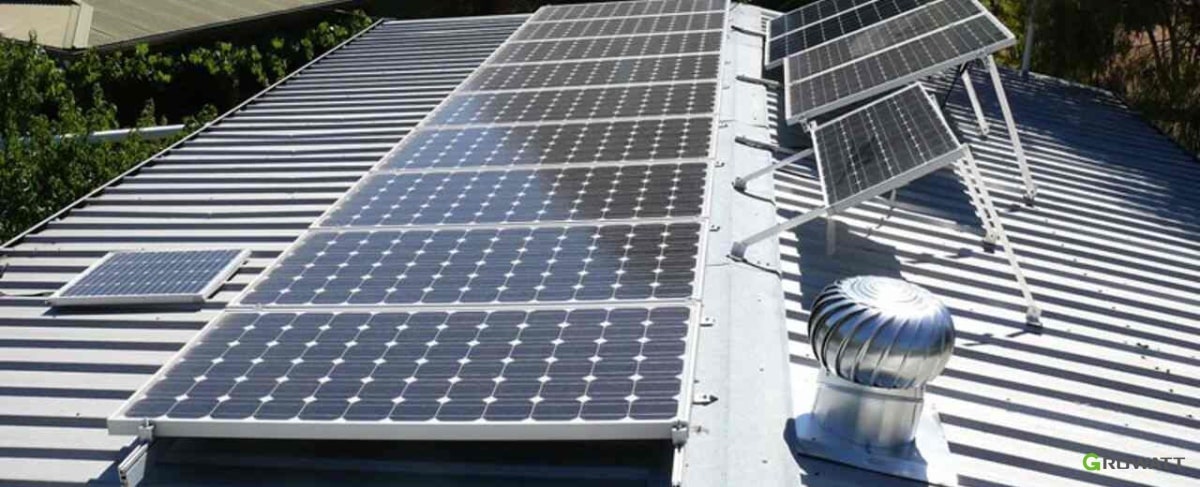

Structural Requirements for Solar Panels
Knowledge of structural demands of the solar panels ensures safety and efficiency in installations, including but not limited to material specification and its corresponding load-carrying capacities or meeting regulations as specified in the local building code. One thing important to consider is that implementation requires experiences from employing professionals to ensure that specific conditions on the site are taken care of, and it makes sure the design will meet all regulations.
The design and installation entail complex procedures starting with preliminary planning, site assessment to the very last installation and testing of systems. Each stage in this process requires critical attention to design, from the structure of the solar panels through the support structure to the general performance of the system. Working with licensed contractors and engineers will provide effective and safe completion of the work.
Solar structure design is a multidisciplinary area, comprising structural calculation, support design, structure types, and basic software to be used. Attention to the load considerations and the structural requirements will mean that the stakeholders have effective but safe and durable solar installations. As the solar industry continues to grow, so will more tools and resources for effective design become available.
For any investor in solar technology, established brands mean quality in product and service. On questions of sustainability and innovation, Growatt can be assured it is in good hands in its commitment to transition toward a cleaner energy future.
