With the shift to renewable energy, solar panels have become very common for residential and commercial use. It is important to know the output voltage of your solar panel to maximize efficiency as well as for compatibility with your energy system. In this article, we will explain how to know solar panel voltage, how to measure, and how to identify if your solar panel is a 12V or a 24V system.
Solar Panel Voltage Explained
Solar panel voltage will play a deciding factor in how your solar panel fits into your power system. Your solar panels tend to be 12V or 24V, which is going to mirror exactly how you’ll use number of panels needed to get what you want to power. Being aware of voltage will allow you to have an even better comprehension of how you wire them in with batteries, inverters, and other elements of your solar power system also on grid solar inverter.

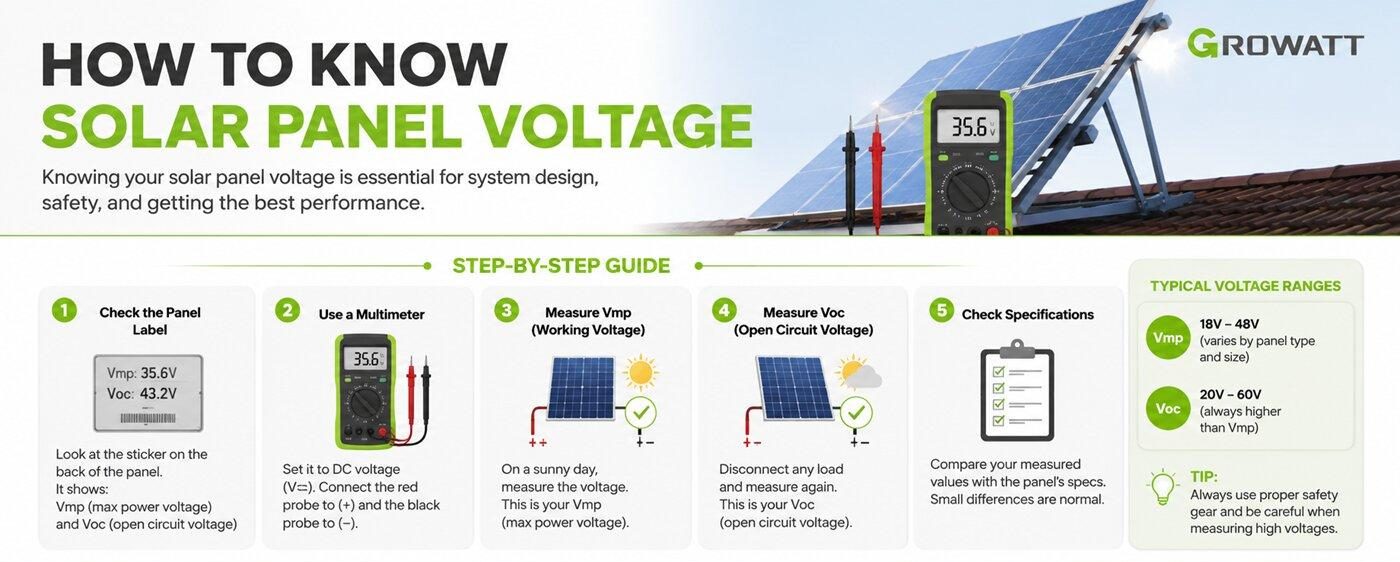

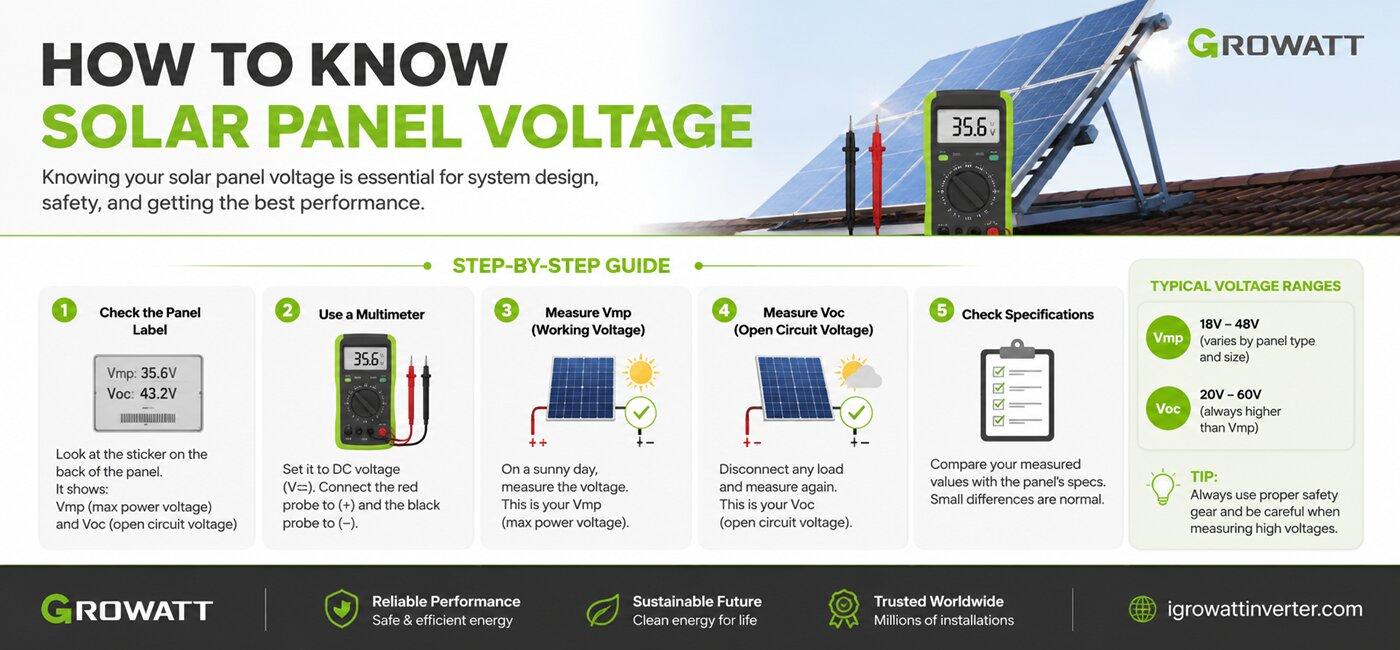

How to Measure Solar Panel Voltage
It is easy to find the voltage of your solar panel. Here are a few ways to do so:
-
Label Details:
A solar panel typically has a label of their specifications with voltage ratings. Look at the “Voc” (open-circuit voltage) and “Vmp” (voltage at maximum power) on the label.
-
Using a Multimeter:
The most commonly utilized method is measuring solar panels’ voltage using a multimeter. Set the multimeter to DC voltage, place the red probe on the positive and the black probe on the negative terminal of the panel, and observe the voltage on the multimeter.
-
Voltage Rating:
To find out whether a solar panel is 12V or 24V, if you are unsure, look at the label on the manufacturer. A 12V solar panel will typically have a Voc of approximately 18V, whereas a 24V panel will have a Voc of approximately 36V.
How to Check Solar Panel Voltage
To confirm your solar panel voltage accurately, do the following:
-
Safety First:
Use proper safety gear. Avoid working in a damp environment and ensure you are insulated from any conductive surface.
-
Disconnect Load:
Disconnect your solar panel if it is connected to a battery or any load so that you can get a proper reading.
-
Measure Open Circuit Voltage:
Measure the open circuit voltage of the solar panel using a multimeter. Position the multimeter probes as described above. The reading you get will be the open-circuit voltage (Voc), which is a critical parameter to determine the solar panel’s performance.
How to Check Open Circuit Voltage of Solar Panel
As shown, a measurement of the open-circuit voltage (Voc) provides you with a direct measurement of the panel’s voltage output with no load attached. This is especially significant:
-
Connect Multimeter:
Connect the multimeter to the terminals of the solar panel as explained above.
-
Sunlight Exposure:
Position the solar panel in the direct sunlight to obtain the maximum reading. Voltage can be different based on the sunlight exposure for the panel.
-
Record the Reading:
The multimeter shall display the open-circuit voltage. If you record around 18V, then it is likely a 12V panel, while measuring around 36V shows that it is a 24V panel.
Testing Whether a Solar Panel is 12V or 24V
Understanding the difference between a 12V and a 24V solar panel ensures your system is compatible:
Physical Size:
Typically, 12V panels will be lighter and smaller than 24V panels. It is not always a safe operation, however, as sizes vary between manufacturers.
Voc Readings:
As previously mentioned, the Voc is a decent measurement. A 12V panel will have a Voc of around 18V, and a 24V panel will have a Voc of around 36V.
Usage Context:
If it is to be utilized in a system appropriate for 12V batteries, then the likelihood is that it is a 12V panel. If appropriate to use with 24V batteries, then probable it is a 24V panel.
How Do I Determine the Voltage of My Solar Panel?
If you remain uncertain about the voltage of your solar panel, then you may follow these steps:
Consult the Manual:
The product manual or user guide usually contains important details regarding the power rating of the panel and voltage.
Company Website:
Consult the company website for technical details. It might help in cross-checking the voltage rating as well as other important parameters.
Expert Help:
In case you don’t want to measure the voltage yourself, a professional solar panel installer can help you with this. They can provide you with a precise measurement and inform you about your solar panel system.
Testing a Solar Panel without a Multimeter
If a multimeter is not available for you, you can use alternative methods to get an approximation of your solar panel’s voltage:
-
Solar Charge Controller:
If your solar panel is used in conjunction with a solar charge controller, the controller will indicate the voltage output.
-
Battery Charging:
Connect the solar panel to a battery to be used in a 12V or 24V system. If the battery charges successfully using the panel, you can assume its voltage from the type of battery.
-
Use a Voltmeter or Other Test Equipment:
There are some high-end solar test equipment that can measure the voltage without the use of the standard multimeter. The equipment is used primarily by professional solar installers.
Conclusion
Having knowledge of your solar panel voltage is crucial to achieving maximum energy production and system compatibility. If you are either reading with a multimeter, reading from the product’s specification label, or reading from the manufacturer, being aware of measuring solar panel voltage can make your solar experience better.
For those who are willing to invest in good-quality solar panels, such as those manufactured by Growatt, these are well-respected for their performance and reliability and are a great value for your solar power needs. Through compliance with the instructions detailed here, you can safely check the voltage on your solar panel and make your solar power decision with confidence.
| Method | Description |
| Label Information | Examine the label specifications on the panel. |
| Using a Multimeter | Use a multimeter to measure voltage directly. |
| Voltage Rating | Find typical Voc values (12V ~ 18V, 24V ~ 36V). |
| Solar Charge Controller | Use a display-equipped charge controller. |
| Battery Charging | Plug into a battery to assume voltage. |
| Specialized Testing Devices | Employ solar-specific measuring instruments if available. |
You need to know the voltage of your solar panel to ensure maximum efficiency and correct installation. Having knowledge of how to measure and interpret these measurements, you are better placed to customize your solar energy system to your own specific requirements.
